OEM#: FFM485G1New OEM Original Outright

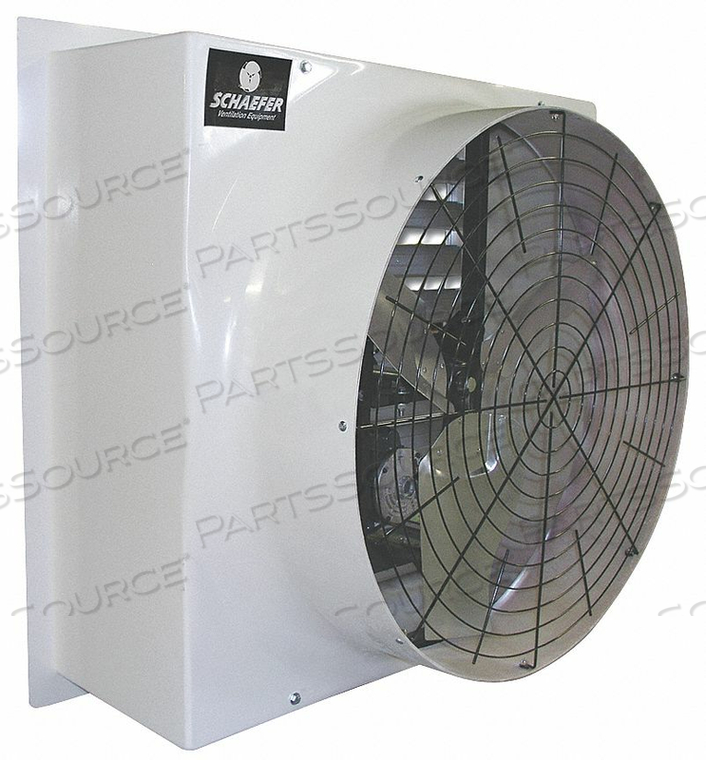

EXH FAN B/D 48 DIA CFM 23 391 115/230 V by JJS Technical Services

Your price:
$3,026.64 each
$3,102.95 Savings: $76.31 (2%)
Estimated to ship by 01/29 if ordered before 4:30 PM EST
HomeJJS Technical Servicesffm485g1
EXH FAN B/D 48 DIA CFM 23 391 115/230 V by JJS Technical Services
EXH FAN B/D 48 DIA CFM 23 391 115/230 V by JJS Technical Services

OEM#: FFM485G1
EXH FAN B/D 48 DIA CFM 23 391 115/230 V by JJS Technical Services

New OEM Original Outright
Your price:
$3,026.64 each
$3,102.95 Savings: $76.31 (2%)
Estimated to ship by 01/29 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: FFM485G1 Key Specs
Item
EXH FAN B/D 48 DIA CFM 23 391 115/230 V
OEM
JJS Technical Services
OEM #
FFM485G1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Agency Compliance
UL Listed Motor
Bearing Type
Permanently Lubricated Ball
CFM @ 0.000 in SP
23,391
CFM @ 0.050 in SP
22,365
CFM @ 0.100 in SP
20,576
CFM @ 0.150 in SP
18,563
Country of Origin
USA
Fan RPM
365
Flange Width (Inches)
2-3/4 in
For Use With
General Exhaust Application
Frame Finish
Polished Tan Fiberglass
Frame Material
Fiberglass
Free Area (Square-Feet)
21
Full Load Amps
9.8/4.9
HP
1 hp
Height (Inches)
55-1/2 in
Hz
60
Includes
Aluminum Shutter and Belt Tensioner
Max Ambient Temperature (F)
104 Degrees F
Max Depth (Inches)
26 in
Motor Enclosure
Totally Enclosed Air Over
Motor Insulation
Class B
Motor RPM
1725
Motor Type
Capacitor-Start/Run
Mounting Location
Wall
Number of Blades
5
Opening Required H (Inches)
56-1/4 in
Opening Required W (Inches)
55-3/4 in
Phase
1
Propeller Diameter (Inches)
48 in
Propeller Material
Galvanized Steel
Shaft Diameter (Inches)
5/8 in
Type
Belt Drive, Assembled
Venturi Clearance Diameter (Inches)
49 in
Venturi Depth (Inches)
13 in
Voltage
115/230
Watts
746 W
Width (Inches)
55-1/4 in
