OEM#: ET91215CRNew OEM Original Outright

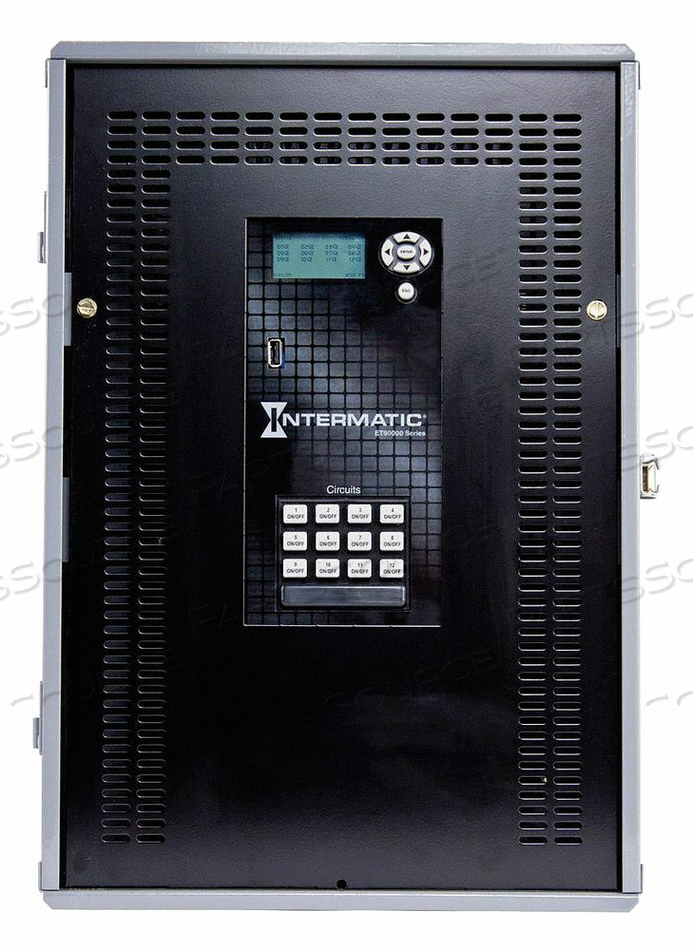

ELECTRONIC TIMER ASTRO 365 DAYS SPDT by Intermatic
Your price:
$3,604.57 eachShip date will be provided after ordering
OEM#: ET91215CRELECTRONIC TIMER ASTRO 365 DAYS SPDT by Intermatic
New OEM Original Outright
Your price:
$3,604.57 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Product Overview
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.
Technical Specs
P/N: ET91215CR Key Specs
Item
ELECTRONIC TIMER ASTRO 365 DAYS SPDT
OEM
Intermatic
OEM #
ET91215CR
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Amps
30
Available Actions - Electronic Timer
On/Off, Pulse, Cycle
Backup Device
Capacitor
Backup Time
100 hr.
Color
Gray
Contact Form
SPDT
Depth
5-1/2 in
Description/Special Features
Ethernet Module, Copy Programming To Other Time Switches For Backup Purposes Via USB
Display Height
1 in
Display Width
2 in
Enclosure
Metal
Event Allocation - Electronic Timer
1 On/Off Action = 1 Event, 1 Pulse Action = 1 Event, 1 Cycle Action = 1 Event
Events Available - Electronic Timer
4000
Green Environmental Attribute
Programmable Timer Enables Reduced Energy Consumption
HP @ 120V
NO: 1, NC: 1/4
HP @ 240V
NC: 1/2, NO: 2
Height
18-1/2 in
Max Time Setting
365 days
Min Time Setting
1 sec.
Mounting
Snap-In
NEMA Rating
3R
Number of Channels
12
Number of Poles
12
Operating Temperature
-40 Degrees to 120 Degrees F
Operation Mode
Astro 365 Days
Pulse Duration
1 sec. to 24 hr.
Standards
California Title 24 Complaint, cCSAus Listed
Voltage
120 to 277VAC
Width
12-3/4 in
The ET90000 Series combines powerful and intuitive scheduling with truly maintenance-free convenience and included capability of a 2 hour override. The PC App and Mobile App provide real-time remote control, and the USB connection and Ethernet capabilities enable in-field updates. These products can be used to help meet Title 24 requirements.
