OEM#: BRY5469NCNew OEM Original Outright

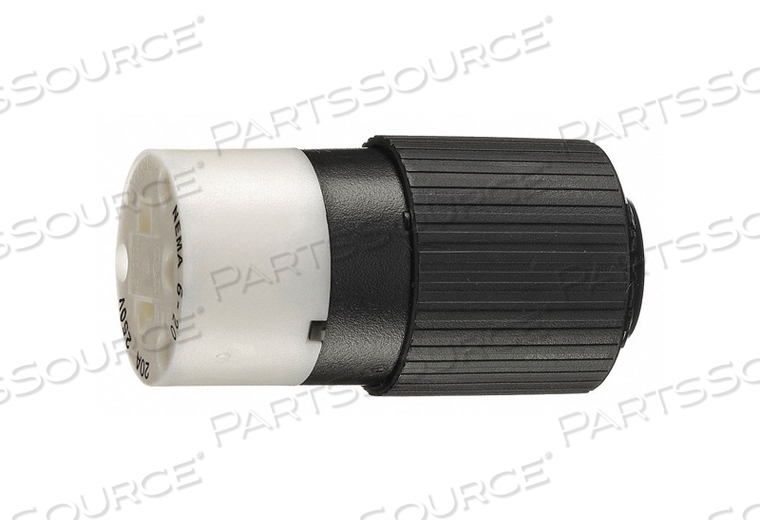

STRAIGHT BLADE CONNECTOR, 6-20R, 20 A, 250V AC, 2 POLES, BLACK/WHITE, SCREW TERMINALS by Hubbell Power Systems

Your price:
$34.61 eachReady to ship
HomeHubbell Power SystemsBRY5469NC
STRAIGHT BLADE CONNECTOR, 6-20R, 20 A, 250V AC, 2 POLES, BLACK/WHITE, SCREW TERMINALS by Hubbell Power Systems
STRAIGHT BLADE CONNECTOR, 6-20R, 20 A, 250V AC, 2 POLES, BLACK/WHITE, SCREW TERMINALS by Hubbell Power Systems

OEM#: BRY5469NC
STRAIGHT BLADE CONNECTOR, 6-20R, 20 A, 250V AC, 2 POLES, BLACK/WHITE, SCREW TERMINALS by Hubbell Power Systems

New OEM Original Outright
Your price:
$34.61 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: BRY5469NC Key Specs
Item
STRAIGHT BLADE CONNECTOR, 6-20R, 20 A, 250V AC, 2 POLES, BLACK/WHITE, SCREW TERMINALS
OEM
Hubbell Power Systems
OEM #
BRY5469NC
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
China
Current Rating
20 A
For Environment
Dry
For Location
Indoor
Grounding
Grounded
Housing Color
Black; White
Housing Material
Nylon
IP Rating
Not Rated
Maximum Operating Temperature
75 °C
Maximum Wire Size
10 AWG
Minimum Operating Temperature
-40 °C
Minimum Wire Size
14 AWG
NEMA Receptacle Configuration
6-20R
Number of Poles
2
Number of Wires
3
Overall Length
2.95 in
Phase
Single
Power Indicating Light
No
Resistance Properties
Chemical Resistant ; Impact Resistant
Standards
NEMA WD-1; NEMA WD-5; UL 498
Voltage Rating
250V AC
Wire Connection Type
Screw Terminals
Wiring Style
Standard
