OEM#: 48X750-NNew OEM Original Outright

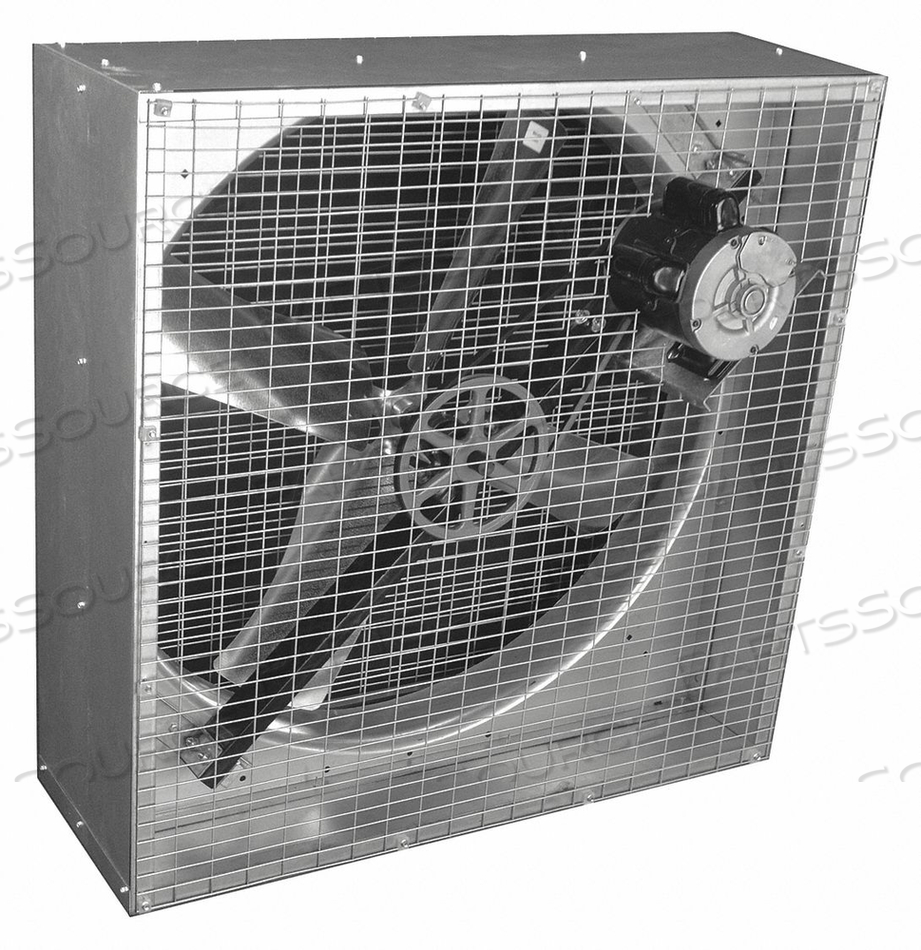

48" BELT DRIVE BOX FAN, 1HP, 1PH, 19608 CFM by Hessaire

Your price:

$1,057.43 eachEstimated to ship by 01/15 if ordered before 10:30 AM EST

48" BELT DRIVE BOX FAN, 1HP, 1PH, 19608 CFM by Hessaire

48" BELT DRIVE BOX FAN, 1HP, 1PH, 19608 CFM by Hessaire

OEM#: 48X750-N
48" BELT DRIVE BOX FAN, 1HP, 1PH, 19608 CFM by Hessaire

New OEM Original Outright

Your price:

$1,057.43 each

Estimated to ship by 01/15 if ordered before 10:30 AM EST

Asset Information

ADD TO LIST

Product Overview

Hessaire incorporates industry leading fan, motor and blade design capabilities in all air movement products. Hessaire's galvanized box fan line features heavy gauge G90 galvanized components for long life and harsh environments, heavy gauge galvanized wire guards, and sealed ball bearing ag duty motors. Industrial grade fan blades are matched with the motors for maximum efficiencies, airflow and motor life. Each box fan includes a hanging bracket as well as eyebolt holes in the cabinets for hanging options. For models with discharge shutters, shutters feature heavy gauge extruded aluminum components. Louvers are counterbalanced for optimum performance.

Technical Specs

P/N: 48X750-N Key Specs

Item

48" BELT DRIVE BOX FAN, 1HP, 1PH, 19608 CFM

OEM

Hessaire

OEM #

48X750-N

Condition

New OEM Original

Returnable

No

Warranty

Mfr Warranty

Amps

8.60

Cfm High

19,608

Color

Galvanized

Construction

Galvanized

Country of Origin

USA

Drive Type

Belt

Fan Diameter Inches

48

Height Inches

52-1/8

Hertz (Hz)

60

Horsepower

1

Length Inches

52-1/8

Limited Warranty Years

2

Phase

1

Rpm

1725

Speeds

1

Voltage

115 / 230

Weight Lbs

88

Width Inches

29

Hessaire incorporates industry leading fan, motor and blade design capabilities in all air movement products. Hessaire's galvanized box fan line features heavy gauge G90 galvanized components for long life and harsh environments, heavy gauge galvanized wire guards, and sealed ball bearing ag duty motors. Industrial grade fan blades are matched with the motors for maximum efficiencies, airflow and motor life. Each box fan includes a hanging bracket as well as eyebolt holes in the cabinets for hanging options. For models with discharge shutters, shutters feature heavy gauge extruded aluminum components. Louvers are counterbalanced for optimum performance.
