OEM#: S-WH-4DB-4SL-FBNew OEM Original Outright

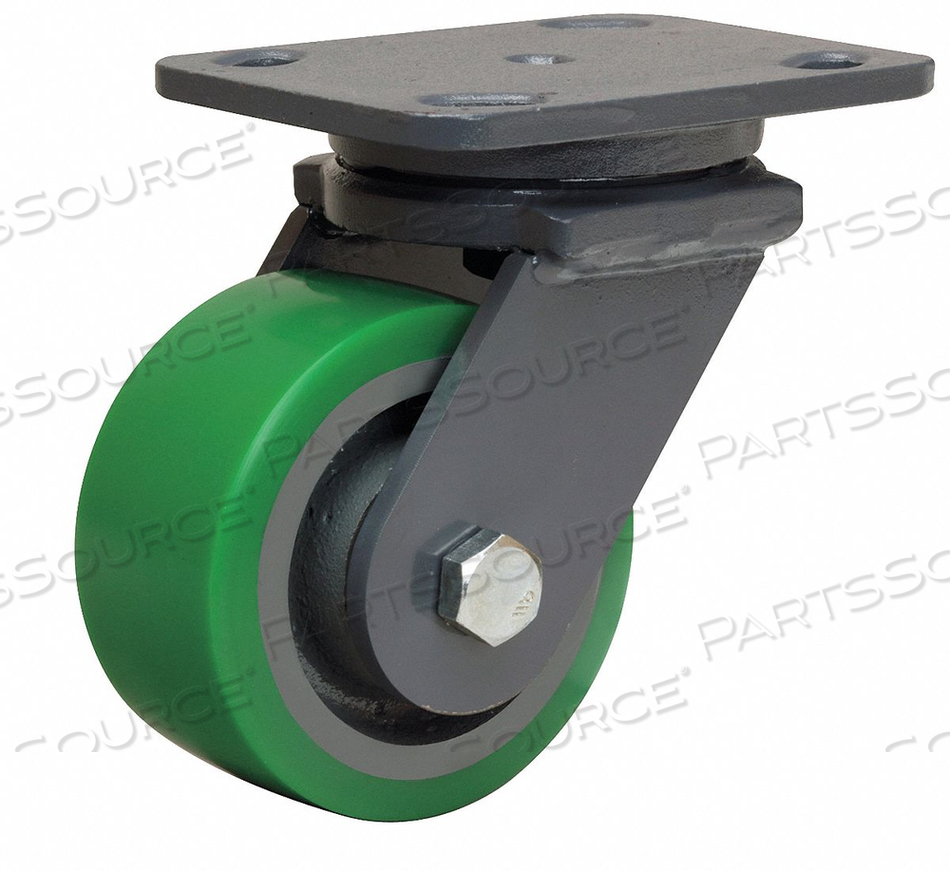

STANDARD PLATE CASTER SWIVEL 750 LB. by Hamilton

Your price:
$263.41 eachEstimated to ship by 04/29 if ordered before 1:30 PM EST
HomeHamiltonswh4db4slfb
STANDARD PLATE CASTER SWIVEL 750 LB. by Hamilton

OEM#: S-WH-4DB-4SL-FB
STANDARD PLATE CASTER SWIVEL 750 LB. by Hamilton

New OEM Original Outright
Your price:
$263.41 each
Ready to shipReady to Ship
Estimated to ship by 04/29 if ordered before 1:30 PM EST
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: S-WH-4DB-4SL-FB Key Specs
Item
STANDARD PLATE CASTER SWIVEL 750 LB.
OEM
Hamilton
OEM #
S-WH-4DB-4SL-FB
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Automotive, Industrial
Caster Brake Type
Swivel Lock with Side Pedal Brake
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Core Color
Gray
Frame Finish
Enamel
Includes
Brake, Swivel Lock
Includes Thread Guards
No
Inside Bolt Hole Spacing
2-5/8 x 3-5/8 in
Load Rating
750 lb
Mounting Bolt Diameter
1/2 in
Mounting Height
5-5/8 in
Mounting Plate Bolt Hole Pattern
B
Mounting Plate Size
4 x 5 in
Non-Marking
Yes
Number of Mounting Holes
4
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
Mfr. No. W-420-DB-1/2
Standards
ICWM
Swivel Construction
Kingpin
Swivel Lock Type
4-Position Directional Lock
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Wheel Core Material
Cast Iron
Wheel Diameter
4 in
Wheel Width
2 in
Wheel/Tread Color
Green
Wheel/Tread Hardness
95 Shore A
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
