OEM#: 2073088-001

AUO-V1 LCD MAC 5500 HARNESS KIT by GE Medical Systems Information Technology (GEMSIT)

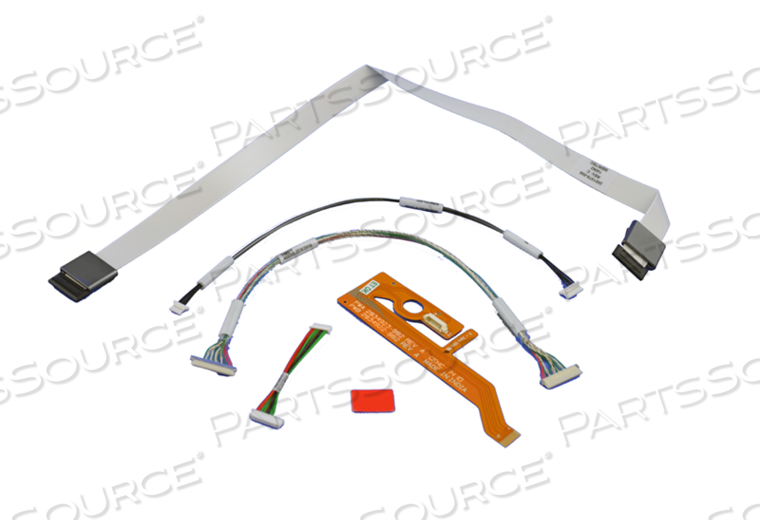

The Harness Kit provides cables that are required to service the AUO-V1 LCD display assembly for MAC 5500. The kit consists of a flex assembly MAC micro semi backlight, display cable assembly, a main board to LVDS power cable, LCD data cable and an LVDS display power cable. An adhesive pad is provided with the harness kit to secure the cables. The cables and parts are secured in a carton box and are supported by support foams at the sides and above the kit. The cables can be removed easily from the display by removing the display from device, removing bezel from the display, flipping the display and they can be removed or replaced. The MAC 5500 is an ECG device, the electrocardiogram (ECG) is a diagnostic test where in metal electrodes are placed on a patient’s chest. The electrical charges generated by the heart as it beats are detected and displayed on a screen in the form of a graph. The display screen provides the data in text form or waveform.

• Field Replaceable Unit (FRU) - can be quickly and easily replaced and removed
• Cables covered by sleeves
• Aesthetic appearance
• Very durable

The Harness Kit provides cables that are required to service the AUO-V1 LCD display assembly for MAC 5500. The kit consists of a flex assembly MAC micro semi backlight, display cable assembly, a main board to LVDS power cable, LCD data cable and an LVDS display power cable. An adhesive pad is provided with the harness kit to secure the cables. The cables and parts are secured in a carton box and are supported by support foams at the sides and above the kit. The cables can be removed easily from the display by removing the display from device, removing bezel from the display, flipping the display and they can be removed or replaced. The MAC 5500 is an ECG device, the electrocardiogram (ECG) is a diagnostic test where in metal electrodes are placed on a patient’s chest. The electrical charges generated by the heart as it beats are detected and displayed on a screen in the form of a graph. The display screen provides the data in text form or waveform.
