Replaces GE Medical Systems Information Technology (GEMSIT) 2037103-053

BEZEL, BP / SPO2

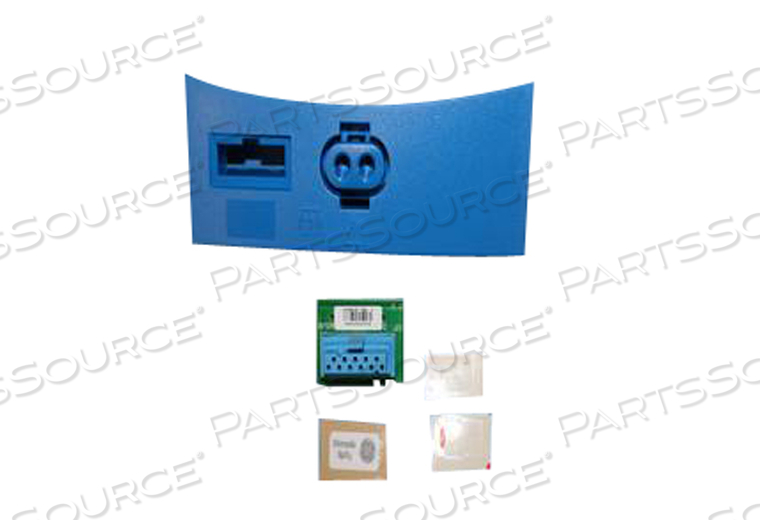

The Bezel (BP& SpO₂) is being used as an enclosure panel at the front side of the CARESCAPE™ V100 Vital Signs Monitor machine which comes under patient monitoring systems. There are two connectors in the bezel, one is a SpO₂ sensor connector which is attached to the SpO₂ cable and the other is a Non-invasive blood pressure (NIBP) connector that attaches the NIBP cuff hose. The bezel panel is made up of Cycoloy CX2142ME Polycarbonate and Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic, which offers high heat resistance and a flame retardant property to the bezel panel. The excellent impact resistance of the material provides the ability to withstand intense force or shock to bezel panel. The entire surface of the bezel has a good finish. The bezel panel kit also includes Printed Wiring Assembly (PWA) ProCare V2 interface board, ProCare Masimo label, ProCare Oximax label and Ohmeda SpO₂ product ID label. The PWA ProCare interface board is assembled in the port on the left side of the NIBP connector which forms the SpO₂ sensor connector where SpO₂ cables are attached. The ProCare Masimo and Oximax label are made of durable and strong polyester. The Ohmeda SpO₂ product ID label is made of polycarbonate which is a durable plastic and easily printable. This label uses 3M™ 9471LE high strength acrylic adhesive, it is extremely smooth and helps maintain excellent graphic appearance for the label.

The Bezel (BP& SpO₂) is being used as an enclosure panel at the front side of the CARESCAPE™ V100 Vital Signs Monitor machine which comes under patient monitoring systems. There are two connectors in the bezel, one is a SpO₂ sensor connector which is attached to the SpO₂ cable and the other is a Non-invasive blood pressure (NIBP) connector that attaches the NIBP cuff hose. The bezel panel is made up of Cycoloy CX2142ME Polycarbonate and Acrylonitrile-Butadiene-Styrene (PC/ABS) plastic, which offers high heat resistance and a flame retardant property to the bezel panel. The excellent impact resistance of the material provides the ability to withstand intense force or shock to bezel panel. The entire surface of the bezel has a good finish. The bezel panel kit also includes Printed Wiring Assembly (PWA) ProCare V2 interface board, ProCare Masimo label, ProCare Oximax label and Ohmeda SpO₂ product ID label. The PWA ProCare interface board is assembled in the port on the left side of the NIBP connector which forms the SpO₂ sensor connector where SpO₂ cables are attached. The ProCare Masimo and Oximax label are made of durable and strong polyester. The Ohmeda SpO₂ product ID label is made of polycarbonate which is a durable plastic and easily printable. This label uses 3M™ 9471LE high strength acrylic adhesive, it is extremely smooth and helps maintain excellent graphic appearance for the label.
