OEM#: 5451284-2New OEM Original Outright

LOGIQ E BATTERY PACK - 14.4 V DC by GE Healthcare

Your price:
$464.67 eachEstimated to ship by 12/26 if ordered before 4:00 PM EST
HomeGE Healthcare54512842
BUYING OPTIONS:
New OEM Original
Outright Purchase
$464.67 each
Warranty: 90 Day
Refurbished
Outright Purchase
$600.00 each
Warranty: 90 Day
SBA
LOGIQ E BATTERY PACK - 14.4 V DC by GE Healthcare
LOGIQ E BATTERY PACK - 14.4 V DC by GE Healthcare
LOGIQ E BATTERY PACK - 14.4 V DC by GE Healthcare

OEM#: 5451284-2
LOGIQ E BATTERY PACK - 14.4 V DC by GE Healthcare

New OEM Original Outright
Your price:
$464.67 each
Ready to shipReady to Ship
Estimated to ship by 12/26 if ordered before 4:00 PM EST
Asset Information

A special handling fee may apply to this item. See FAQs for details.

ADD TO LIST
Product Overview

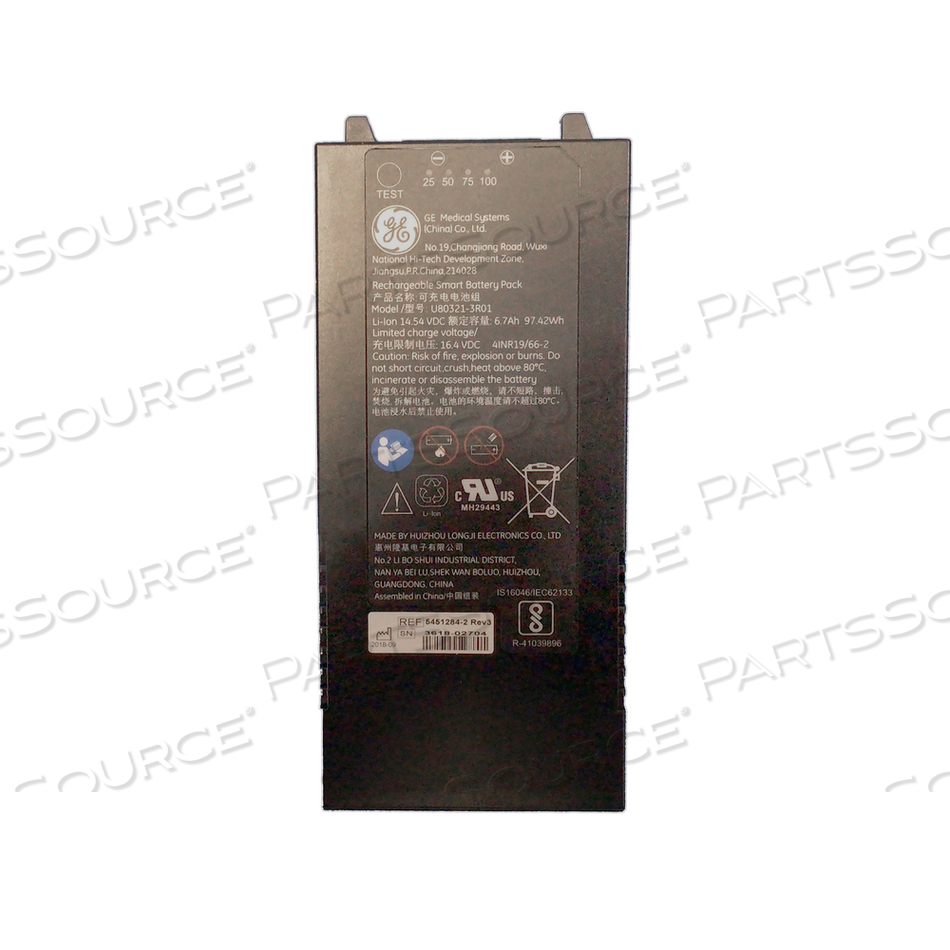

LOGIQ e Battery Pack is comprised of two pairs of four Lithium-Ion (li-on) cells connected in series to generate 14.4 VDC and 3600 mAh capacity. The battery pack is built-in with a battery management Printed Circuit Board Assembly (PCBA). The built-in over current, over temperature, over charge and over discharge protection saves the battery from functioning during abnormal conditions. The rechargeable battery pack is a specially designed module intended for use in medical applications. The built-in secondary battery protection IC chip S-8244AAFFN-CEF-T2, 4.35 V, MSO-8 includes voltage detector circuit and delay circuit.


Additional Features:
  • Over charge, over discharge, short circuit, over current and over temperature protection
  • Low self-discharge
  • In-built LED display
  • High load withstanding capacity
  • Inbuilt gas gauge and battery protection IC BQ20Z65-R1, TSSO-44
  • Built-in IC chip S-8244AAFFN-CEF-T2, 4.35 V, MSO-8 secondary battery protection
  • Embedded with EPROM Integrated Circuit (IC)
  • Electrostatic discharge protection
  • RoHS compliant

    • Features
    • Four series two parallel (4S2P) flat pack battery circuit configuration
    Technical Specs
    P/N: 5451284-2 Key Specs
    Item
    LOGIQ E BATTERY PACK - 14.4 V DC
    OEM
    GE Healthcare
    OEM #
    5451284-2
    Condition
    New OEM Original
    Returnable
    No
    Warranty
    90 Day
    Certifications
    Comply with UL, IEC, FCC, UN, KC standards and It is a ROHS compliant
    Equivalents
    Fitments

    LOGIQ e Battery Pack is comprised of two pairs of four Lithium-Ion (li-on) cells connected in series to generate 14.4 VDC and 3600 mAh capacity. The battery pack is built-in with a battery management Printed Circuit Board Assembly (PCBA). The built-in over current, over temperature, over charge and over discharge protection saves the battery from functioning during abnormal conditions. The rechargeable battery pack is a specially designed module intended for use in medical applications. The built-in secondary battery protection IC chip S-8244AAFFN-CEF-T2, 4.35 V, MSO-8 includes voltage detector circuit and delay circuit.


    Additional Features:
  • Over charge, over discharge, short circuit, over current and over temperature protection
  • Low self-discharge
  • In-built LED display
  • High load withstanding capacity
  • Inbuilt gas gauge and battery protection IC BQ20Z65-R1, TSSO-44
  • Built-in IC chip S-8244AAFFN-CEF-T2, 4.35 V, MSO-8 secondary battery protection
  • Embedded with EPROM Integrated Circuit (IC)
  • Electrostatic discharge protection
  • RoHS compliant

    • 5451284: GE Healthcare: Item Replacement
