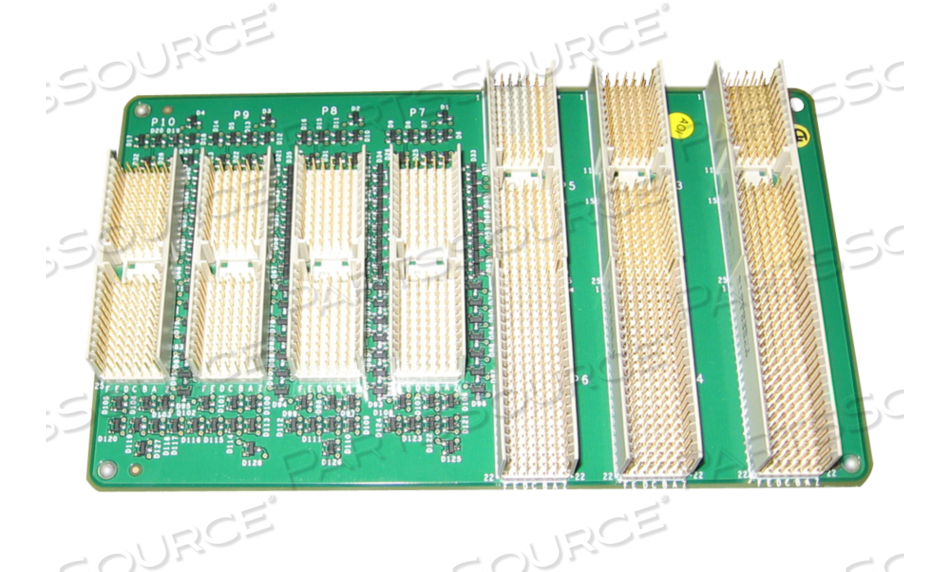

The Front Plane Assembly are include the connectors for the Relay board, RX128 boards and GTX boards. All the boards are based on 2.0 mm metric standard PCI connector. The main function of the Front plane board is to connect probe 256 channels to system 256 transmit/receive channels. Due to the routing on RLY board.
