OEM#: 46-136334P49

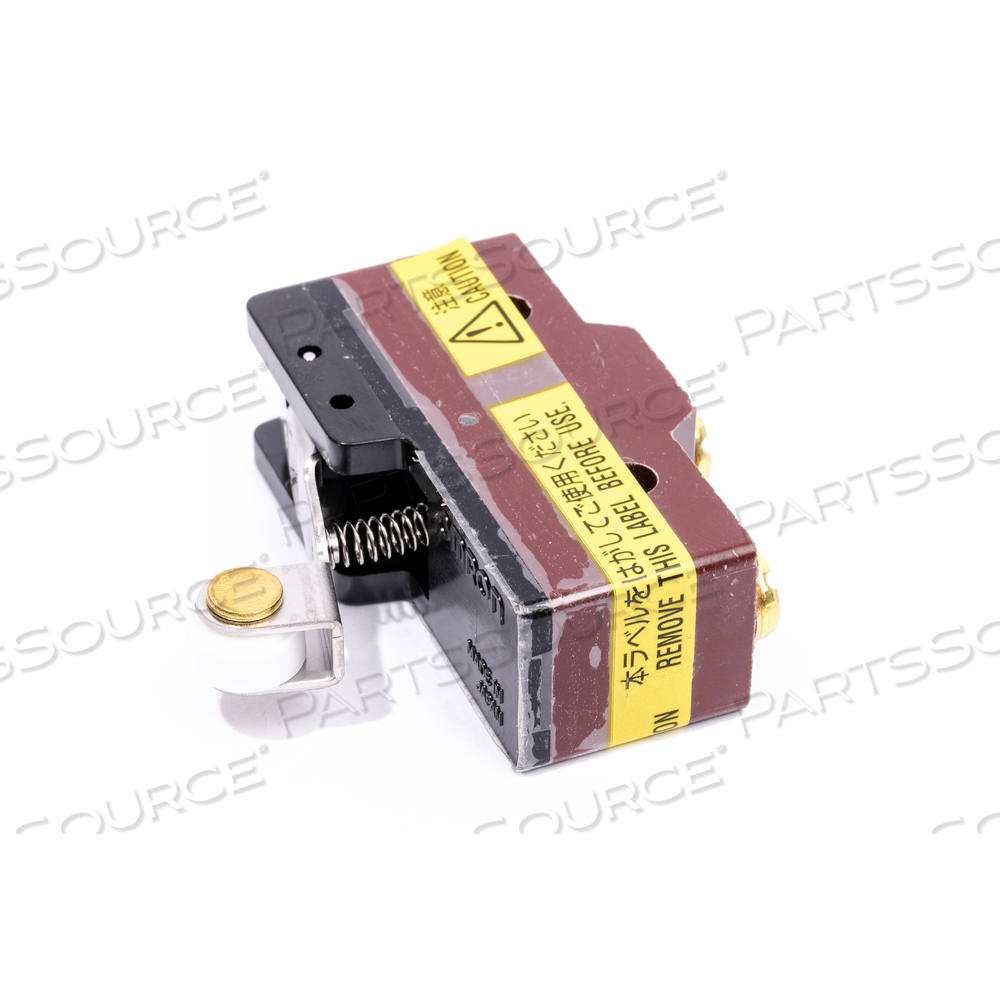

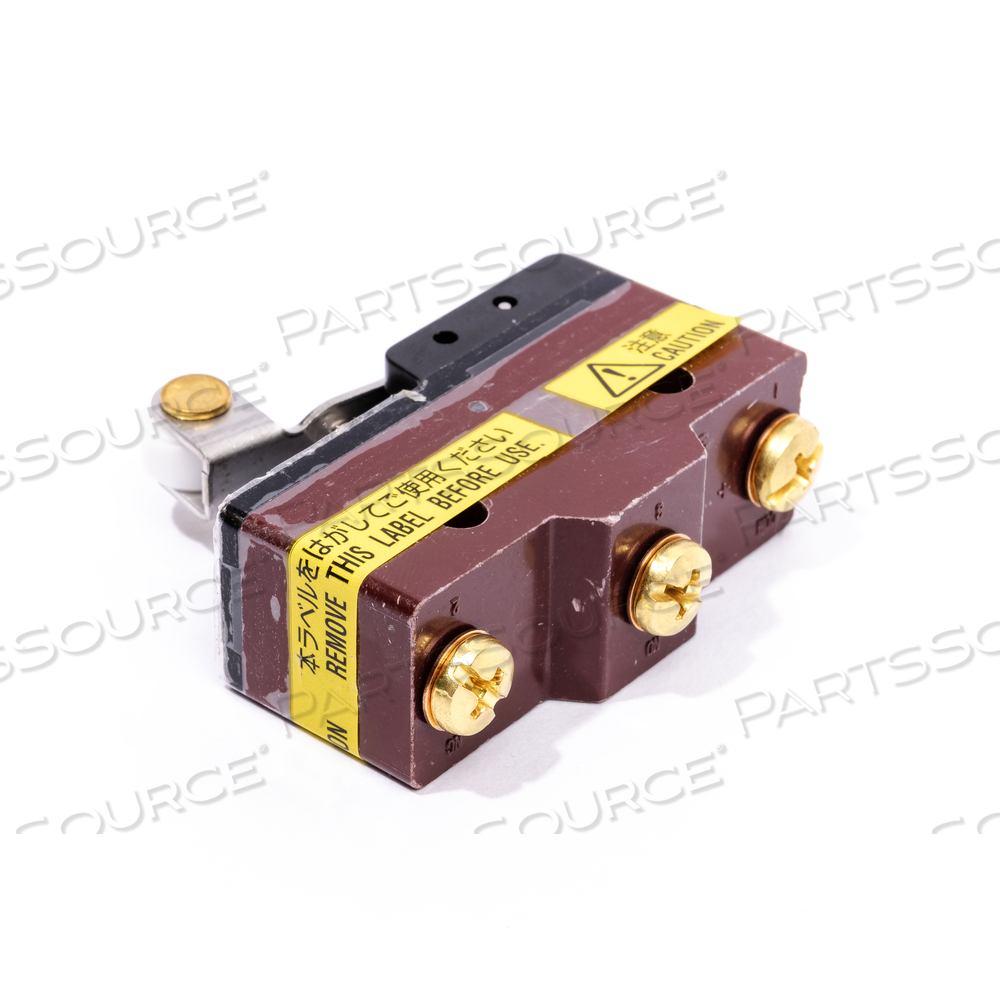

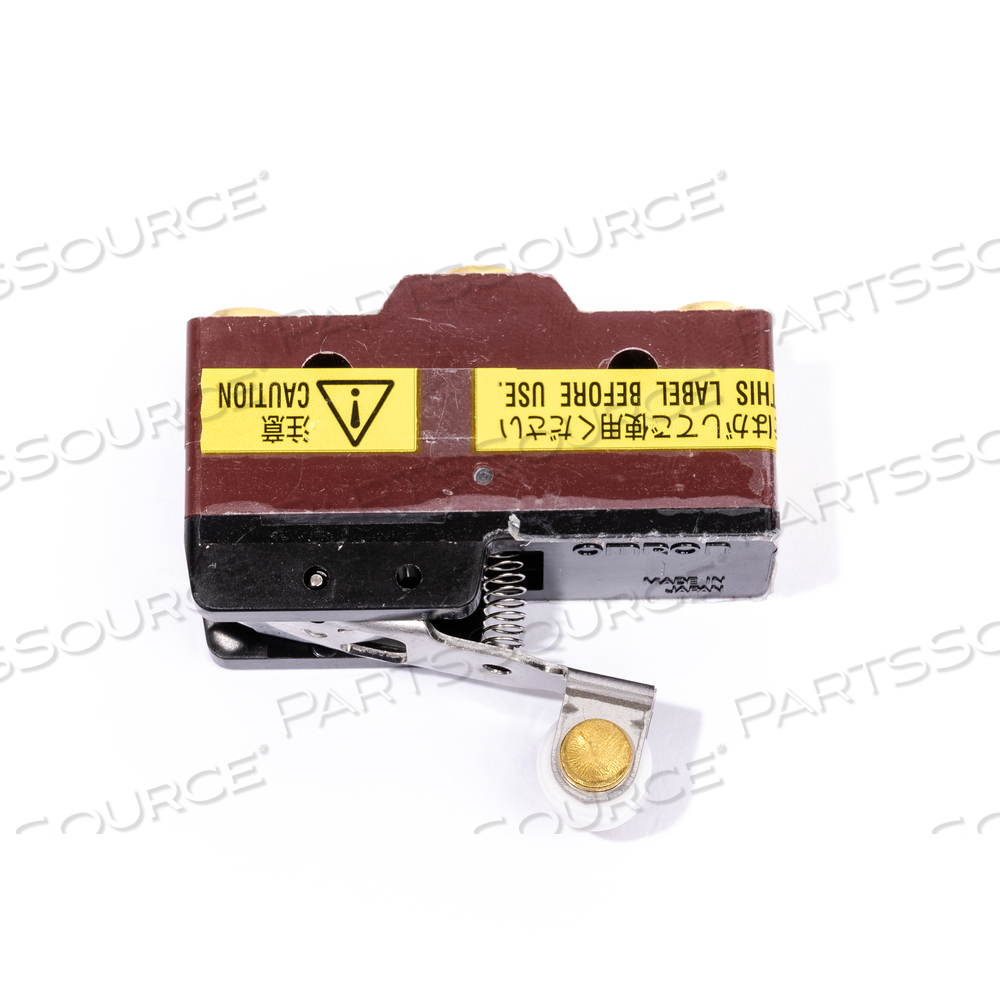

SPDT SNAP-ACTION SWITCH WITH TERMINATION SCREW by GE Healthcare

The Single Pole Double Throw (SPDT) Snap-Action Switch, is a compact switch equipped with an enclosed snap-action contact mechanism that makes a specified motion with a specified force to open/close a circuit with an actuator outside the enclosure. It uses the mechanism by which the moving contact quickly moves from one fixed contact to another fixed contact with minimal relation to the speed at which the switch is operated. This switch has a current capacity of 10 Amp and can operate in the temperature range from -25° C to +80° C with no icing or condensation. It has screw type termination style, which uses three M4 x 5.5 terminal screws with toothed washers with panel mounting. This special purpose switch is used in many medical devices such as UL LOGIQ 500, MR Signa HD Excite 1.5T, XM Senographe DMR+, MR Signa Creator 1.5T and UL RT 3200 etc.,

The Single Pole Double Throw (SPDT) Snap-Action Switch, is a compact switch equipped with an enclosed snap-action contact mechanism that makes a specified motion with a specified force to open/close a circuit with an actuator outside the enclosure. It uses the mechanism by which the moving contact quickly moves from one fixed contact to another fixed contact with minimal relation to the speed at which the switch is operated. This switch has a current capacity of 10 Amp and can operate in the temperature range from -25° C to +80° C with no icing or condensation. It has screw type termination style, which uses three M4 x 5.5 terminal screws with toothed washers with panel mounting. This special purpose switch is used in many medical devices such as UL LOGIQ 500, MR Signa HD Excite 1.5T, XM Senographe DMR+, MR Signa Creator 1.5T and UL RT 3200 etc.,

• GE Healthcare
  • 1.5T SIGNA EXCITE
