OEM#: FRN800G1S-4UNew OEM Original Outright

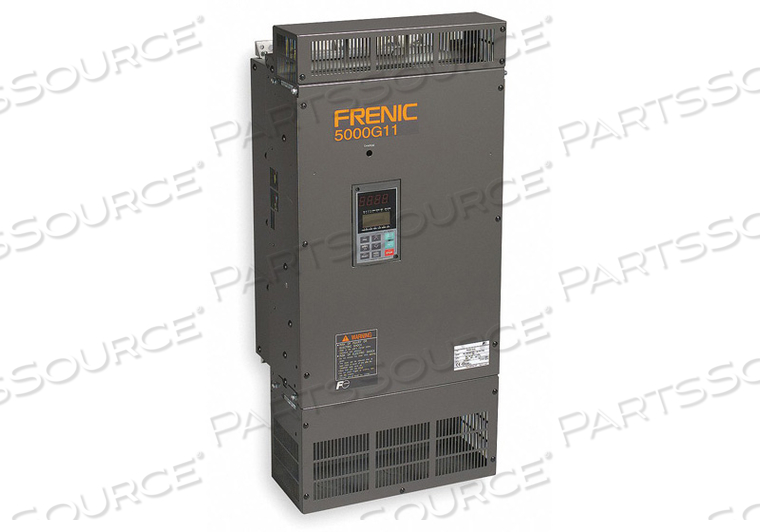

VARIABLE FREQUENCY DRIVE 800 HP 380-480V by Fuji Electric

Your price:
$48,784.17 eachShip date will be provided after ordering
HomeFuji Electricfrn800g1s4u
VARIABLE FREQUENCY DRIVE 800 HP 380-480V by Fuji Electric
VARIABLE FREQUENCY DRIVE 800 HP 380-480V by Fuji Electric

OEM#: FRN800G1S-4U
VARIABLE FREQUENCY DRIVE 800 HP 380-480V by Fuji Electric

New OEM Original Outright
Your price:
$48,784.17 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: FRN800G1S-4U Key Specs
Item
VARIABLE FREQUENCY DRIVE 800 HP 380-480V
OEM
Fuji Electric
OEM #
FRN800G1S-4U
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Accepts Input Control Signal
4 to 20mA and Digital, 5V DC, Analog 0-10V DC
Adjustable Acceleration Time
0 to 6000 sec
Adjustable Deceleration Time
0 to 6000 sec
Control Method
V/F, Dynamic Torque Vector, V/F Control with Speed Sensor or Dynamic Torque Control with Speed Sensor, Vector Control without Speed Sensor, Vector Control with Speed Sensor and Optional PG Card Mounted
Control Type
Keypad and Terminal
Depth
17.32 in
Digital Readout
Yes
Display Type
LCD Monitor and Green Run Indicator
Displays
LCD Monitor & Green Run Indicator
Dynamic Braking
Brake Unit and Resistor Separate Items
Enclosure
Open
For Use With
General Purpose and Inverter Duty 3-Phase Motors
Height
55.12 in
Input Frequency
120 Hz
Input Phase AC
1 or 3
Input Voltage
480V AC
Key Pad Lockout
Yes
Max HP
800 hp
Max Output Amps
740 A
Output Frequency Range
0 to 500 Hz
Output Phase AC
3
Output Voltage
480V AC
Protection
Electronic Thermal Overload 1 through 4 motor, Over Current, Over Voltage, Low Voltage, PG, PID, Heat sink Overheat, Input & output phase loss, Communication Error.
Standards
CE and RoHS Directives, cUL and US Listed
Start/Stop Control
Keypad and Terminal
Starting Torque
200%
Torque @ 1 Hz
200 %
Width
34.65 in
With Bypass / No Bypass
No Bypass
With Line Contactor / No Line Contactor
No Line Contactor
