OEM#: 3979409

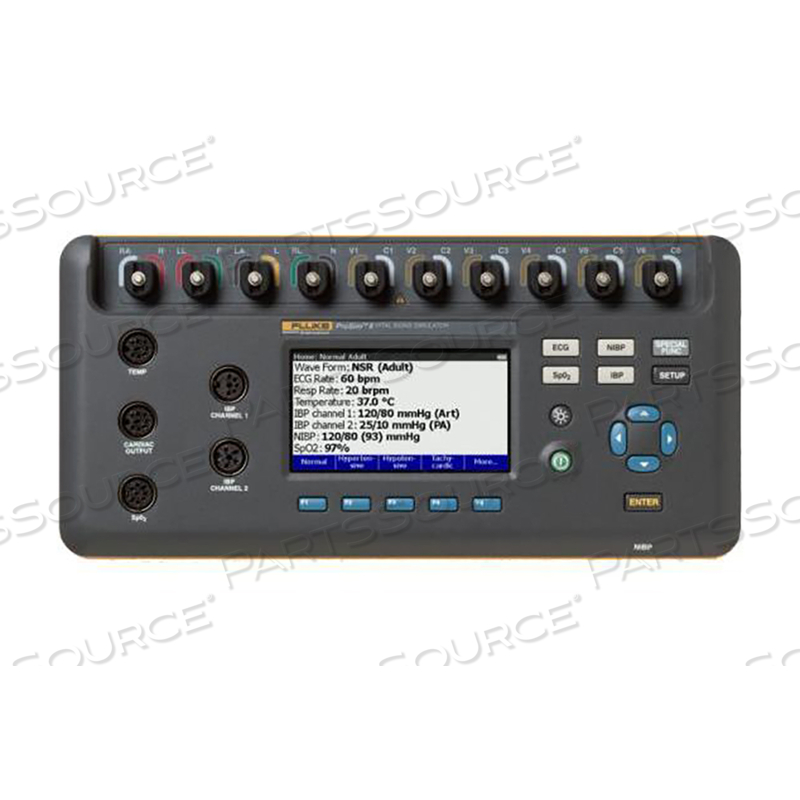

PROSIM 8 VITAL SIGNS AND ECG PATIENT SIMULATOR by Fluke Electronics Corp (Biomedical Div.)

The 8-in-1 ProSim 8 Vital Signs Simulator offers fast and comprehensive preventative maintenance (PM) testing for your entire patient monitor fleet. Designed to get you in and out of most PM locations in minutes, this multifunction simulator tests ECG (including fetal ECG and arrhythmias), respiration, temperature, IBP, cardiac output, NIBP, SpO2,and is capable of testing Rainbow multi-wavelength waveforms. Featuring specialized stay-connected ECG posts for secure lead connections, physiologically-synchronized pulses across all parameters, and customizable patient pre-sets and auto sequences, the ProSim 8 patient simulator provides unbeatably fast and easy complete monitor testing.

• 8-in-1 multifunction simulator tests ECG (including fetal ECG and arrhythmias), respiration, temperature, IBP, cardiac output, NIBP, SpO2, and Rainbow multi-wavelength waveforms
• Stay-connected ECG posts for easy/secure ECG snap and lead connections
• Custom SpO2 r-curve for accurate testing of the latest and future oximetry technologies
• Static pressure linearity testing
• Repeatable NIBP simulation (+/- 2 mmHg) for dynamic pressure repeatability testing
• Physiologically synchronized pulses across all parameters
• Barcode scanning and direct data capture and printing functionality
• Onboard, customizable patient pre-sets and auto sequences for fast/easy testing
• Multi-language user interface offers choice of language selection
• Integrated, easily-replaceable long-life battery
• Optional PC-interface software offers customizable procedures/checklists to replace bulky service manuals and automated data capture/storage
• Wireless communication for remote PC control of test device, as well as data transfer and automated regulatory reporting

• All-in-one patient simulator 80% smaller and 17 lbs./7.7 kilos lighter than single function simulator test tools
• Multi-language user interface offers choice of language selection, Optional PC-interface software offers customizable procedures/checklists and automated data capture/storage
• 8-in-1 multifunction patient simulator is a combination ECG simulator, fetal simulator, arrhythmia simulator, respiration simulator, temperature simulator, IBP simulator, cardiac output simulator, cardiac catheterization simulator, NIBP simulator and
• Stay-connected ECG posts for easy/secure ECG snap and lead connections
• Custom SpO2 R-curve for accurate testing of the latest and future oximetry technologies
• Static pressure linearity testing
• Repeatable NIBP simulation for dynamic pressure repeatability testing
• Physiologically synchronized pulses across all parameters
• Barcode scanning and direct data capture and printing functionality
• Onboard, customizable patient pre-sets and auto sequences for fast/easy testing, Integrated, easily-replaceable long-life battery

The 8-in-1 ProSim 8 Vital Signs Simulator offers fast and comprehensive preventative maintenance (PM) testing for your entire patient monitor fleet. Designed to get you in and out of most PM locations in minutes, this multifunction simulator tests ECG (including fetal ECG and arrhythmias), respiration, temperature, IBP, cardiac output, NIBP, SpO2,and is capable of testing Rainbow multi-wavelength waveforms. Featuring specialized stay-connected ECG posts for secure lead connections, physiologically-synchronized pulses across all parameters, and customizable patient pre-sets and auto sequences, the ProSim 8 patient simulator provides unbeatably fast and easy complete monitor testing.

• 8-in-1 multifunction simulator tests ECG (including fetal ECG and arrhythmias), respiration, temperature, IBP, cardiac output, NIBP, SpO2, and Rainbow multi-wavelength waveforms
• Stay-connected ECG posts for easy/secure ECG snap and lead connections
• Custom SpO2 r-curve for accurate testing of the latest and future oximetry technologies
• Static pressure linearity testing
• Repeatable NIBP simulation (+/- 2 mmHg) for dynamic pressure repeatability testing
• Physiologically synchronized pulses across all parameters
• Barcode scanning and direct data capture and printing functionality
• Onboard, customizable patient pre-sets and auto sequences for fast/easy testing
• Multi-language user interface offers choice of language selection
• Integrated, easily-replaceable long-life battery
• Optional PC-interface software offers customizable procedures/checklists to replace bulky service manuals and automated data capture/storage
• Wireless communication for remote PC control of test device, as well as data transfer and automated regulatory reporting

• Fluke Electronics Corp (Biomedical Div.)
  • PROSIM 8
