OEM#: 2794057

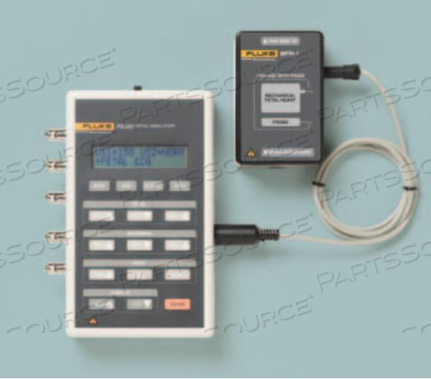

PS320 FETAL MONITORING KIT FOR GE COROMETRICS by Fluke Electronics Corp (Biomedical Div.)

The PS320 is a fetal monitor simulator that simulates fetal and maternal ECG, as well as uterine activity, in order to test and troubleshoot fetal electronic monitors and train clinical staff. The unit is battery operated and small enough to fit in a pocket, making it portable for on-the-go testing. The PS320 simulates several fetal parameters, including twins, as well as a wide range of clinical scenarios for training labor-and-delivery staff in how to recognize normal and abnormal responses. An optional mechanical heart creates fetal heart sounds for testing fetal monitor ultrasound cables and transducers. PS320 offers an easy user interface, providing a 2 x 16-character LCD display with adjustable contrast. The unit operates on a 9 V battery with low-battery monitoring or functions with the supplied battery eliminator.

• Mechanical heart for ultrasound simulation
• TOCO simulation (External or IUP)
• Ultrasound simulation (including twins)
• Maternal ECG simulation
• Fetal ECG (tracks ultrasound #1)
• Internal (DECG) and external fetal ECG
• Uterine-activity selections
• Fetal beat-to-beat variability
• Periodic and non-periodic fetal ECG changes
• Arrhythmia selections
• Compact, lightweight, pocket-size plastic housing
• Battery operated with status indications

The PS-320 Turns on in the Following State:

• Fetal ECG static rate at 150 BPM
• US-1 tracks at 150 BPM
• US-2 normal pattern
• Pressure sensitivity at 5 µV/mmHg
• Pressure/Toco set to zero
• Maternal ECG rate at 80 BPM
• ECG sensitivity at 1 mV
• Toco wave is normal duration at 0 to 50 divisions (i.e. 0 to 50 mmHg)

GE Coromotics Includes:

S320 Fetal Monitoring Kit, GE Corometrics Includes: PS320 Fetal Simulator (PS320, includes Operator Manual MANUAL, Battery Eliminator BE-UNVSL-IEC320C14, and 9 V Battery) MFH-1 Mechanical Fetal Heart Probe –includes Fetal Heart Cable (17156) Soft-Sided Carrying Case for kit (ACCU LUNG CASE) RS-232 Cable, PS320/420 (17291) Corometrics Ultrasound Simulation Cable (17483) Corometrics IUP Simulation Cable (17481) Corometrics TOCO Simulation Cable (17486) Ultrasound Simulation Cable Series 120 (PN 4021537)

The PS320 is a fetal monitor simulator that simulates fetal and maternal ECG, as well as uterine activity, in order to test and troubleshoot fetal electronic monitors and train clinical staff. The unit is battery operated and small enough to fit in a pocket, making it portable for on-the-go testing. The PS320 simulates several fetal parameters, including twins, as well as a wide range of clinical scenarios for training labor-and-delivery staff in how to recognize normal and abnormal responses. An optional mechanical heart creates fetal heart sounds for testing fetal monitor ultrasound cables and transducers. PS320 offers an easy user interface, providing a 2 x 16-character LCD display with adjustable contrast. The unit operates on a 9 V battery with low-battery monitoring or functions with the supplied battery eliminator.

• Mechanical heart for ultrasound simulation
• TOCO simulation (External or IUP)
• Ultrasound simulation (including twins)
• Maternal ECG simulation
• Fetal ECG (tracks ultrasound #1)
• Internal (DECG) and external fetal ECG
• Uterine-activity selections
• Fetal beat-to-beat variability
• Periodic and non-periodic fetal ECG changes
• Arrhythmia selections
• Compact, lightweight, pocket-size plastic housing
• Battery operated with status indications

The PS-320 Turns on in the Following State:

• Fetal ECG static rate at 150 BPM
• US-1 tracks at 150 BPM
• US-2 normal pattern
• Pressure sensitivity at 5 µV/mmHg
• Pressure/Toco set to zero
• Maternal ECG rate at 80 BPM
• ECG sensitivity at 1 mV
• Toco wave is normal duration at 0 to 50 divisions (i.e. 0 to 50 mmHg)

GE Coromotics Includes:

S320 Fetal Monitoring Kit, GE Corometrics Includes: PS320 Fetal Simulator (PS320, includes Operator Manual MANUAL, Battery Eliminator BE-UNVSL-IEC320C14, and 9 V Battery) MFH-1 Mechanical Fetal Heart Probe –includes Fetal Heart Cable (17156) Soft-Sided Carrying Case for kit (ACCU LUNG CASE) RS-232 Cable, PS320/420 (17291) Corometrics Ultrasound Simulation Cable (17483) Corometrics IUP Simulation Cable (17481) Corometrics TOCO Simulation Cable (17486) Ultrasound Simulation Cable Series 120 (PN 4021537)
