OEM#: D402New OEM Original Outright

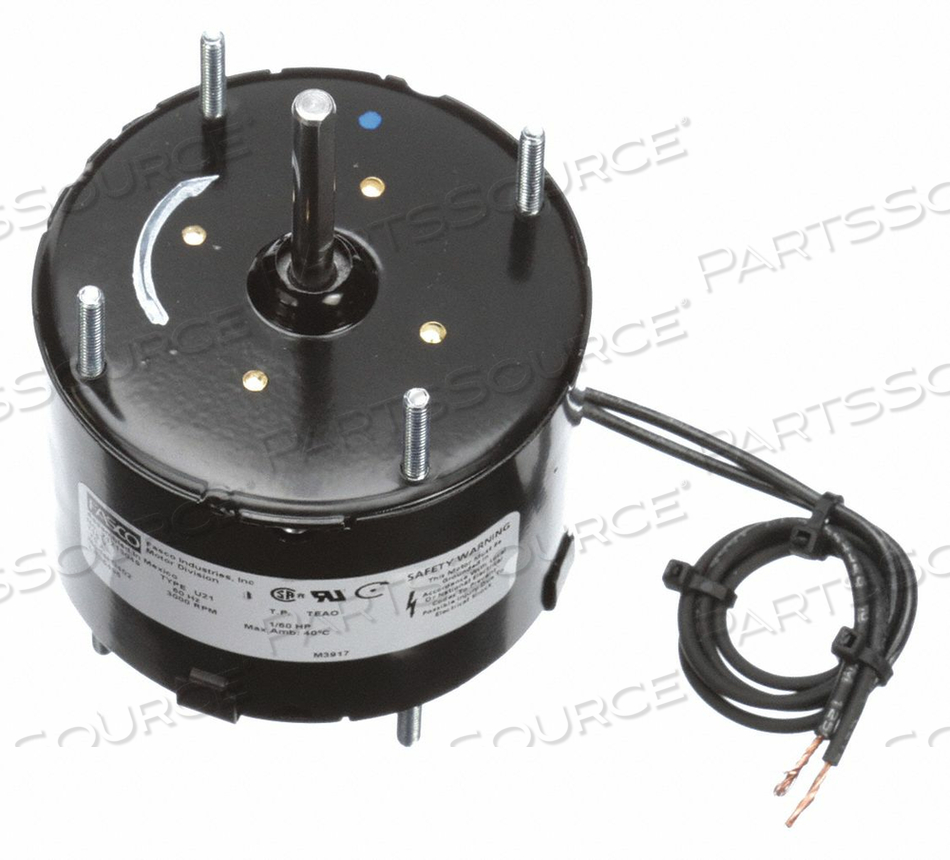

HVAC MOTOR 1/60 HP 3000 RPM 115V 3.3 by Fasco

Your price:
$112.12 eachEstimated to ship by 10/22 if ordered before 5:30 PM EST
HomeFascod402
HVAC MOTOR 1/60 HP 3000 RPM 115V 3.3 by Fasco
HVAC MOTOR 1/60 HP 3000 RPM 115V 3.3 by Fasco

OEM#: D402
HVAC MOTOR 1/60 HP 3000 RPM 115V 3.3 by Fasco

New OEM Original Outright
Your price:
$112.12 each
Ready to shipReady to Ship
Estimated to ship by 10/22 if ordered before 5:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: D402 Key Specs
Item
HVAC MOTOR 1/60 HP 3000 RPM 115V 3.3
OEM
Fasco
OEM #
D402
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
HVAC/R
Body Diameter
3.3 in
Duty
Continuous
Frame
3.3
Full Load Amps
0.75
HP
1/60 hp
Hz
60
Ins. Class
A
Length Less Shaft
2-3/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Shaded Pole
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CWSE
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Pattern
2-7/8 x 2-7/8
Mounting Stud Location
4/Both Ends
Nameplate RPM
3000
Number of Shafts
1
Number of Speeds
1
Phase
1
Shaft Diameter
1/4 in
Shaft Length
1-3/4 in
Standards
CSA Certified (LR36496), UL Recognized (E40513)
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Voltage
115
