OEM#: STFV07510NNew OEM Original Outright

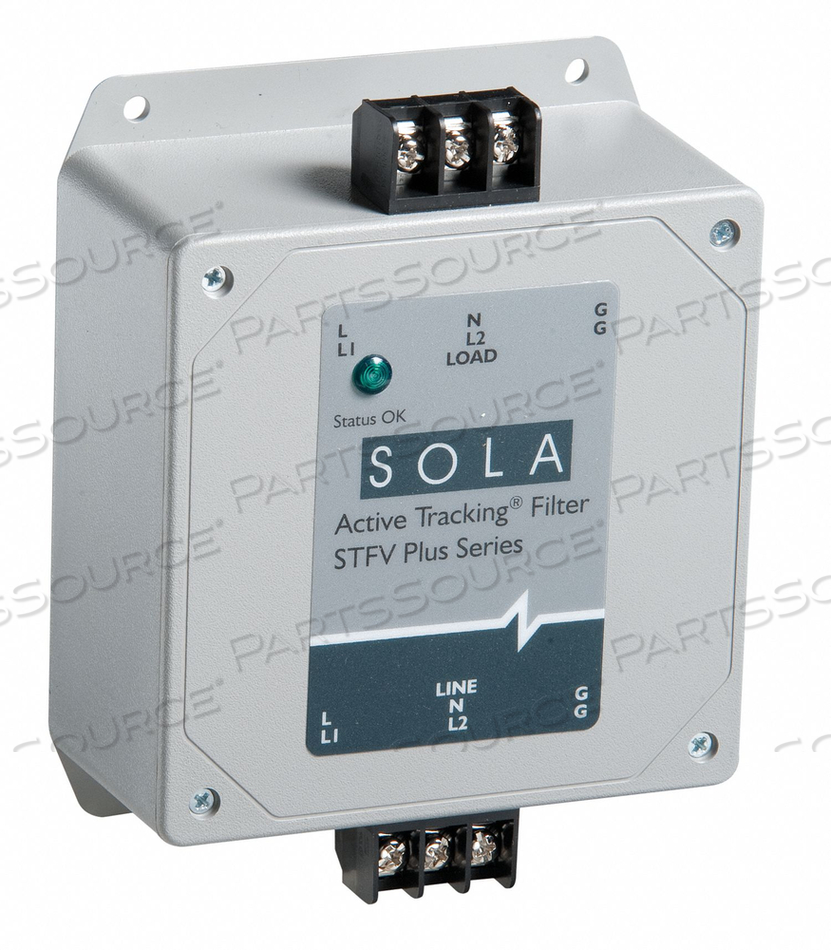

SURGE PROTECTION DEVICE 120VAC 1PH by Emerson Industrial

Your price:
$665.75 eachShip date will be provided after ordering
HomeEmerson Industrialstfv07510n
SURGE PROTECTION DEVICE 120VAC 1PH by Emerson Industrial
SURGE PROTECTION DEVICE 120VAC 1PH by Emerson Industrial

OEM#: STFV07510N
SURGE PROTECTION DEVICE 120VAC 1PH by Emerson Industrial

New OEM Original Outright
Your price:
$665.75 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: STFV07510N Key Specs
Item
SURGE PROTECTION DEVICE 120VAC 1PH
OEM
Emerson Industrial
OEM #
STFV07510N
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Amps
7.5 A
Basic Material
Nonmetallic
Country of Origin
Mexico
Depth
2.35 in
Enclosure Material
Epoxy Encapsulated Plastic
Filtering
Yes
Green Environmental Attribute
Does not Contain Reproductive or Developmental Toxins (as Per State of CA List), Endocrine Disrupters (as Per European Union Priority For Research List), Asthmagens (as Per AOEC List), Carcinogens (as Per IARC 1-2A-2B Lists)
Includes
LED Status Indicator
Length
4.75 in
Max Continuing Operating Voltage
150V AC
Max Operating Temperature
140 Degrees F
Max Surge Current per Mode
12.5kA (L-N, L-G, N-G)
Max Surge Current per Phase
25 kA
Min Operating Temperature
-40 Degrees F
Modes of Protection
L-G, L-N, N-G
Modular
Yes
Mounting Location
Internally Mounted
Mounting Style
Surface
Noise Attenuation
90dB @ 100kHz to 50 MHz
Nominal Discharge Current
7.5 A
Number of Poles
1
Number of Wires
2 Wires + Ground
Phase
1
Short Circuit Current Rating
Not Rated
Standards
CE, CSA, RoHS, UL Listed, cULus Listed
System Connection
Series
Voltage
120V AC
Width
4.75 in
Wire Gauge
18 AWG
