P/N: ISDP-015 Key Specs
Item

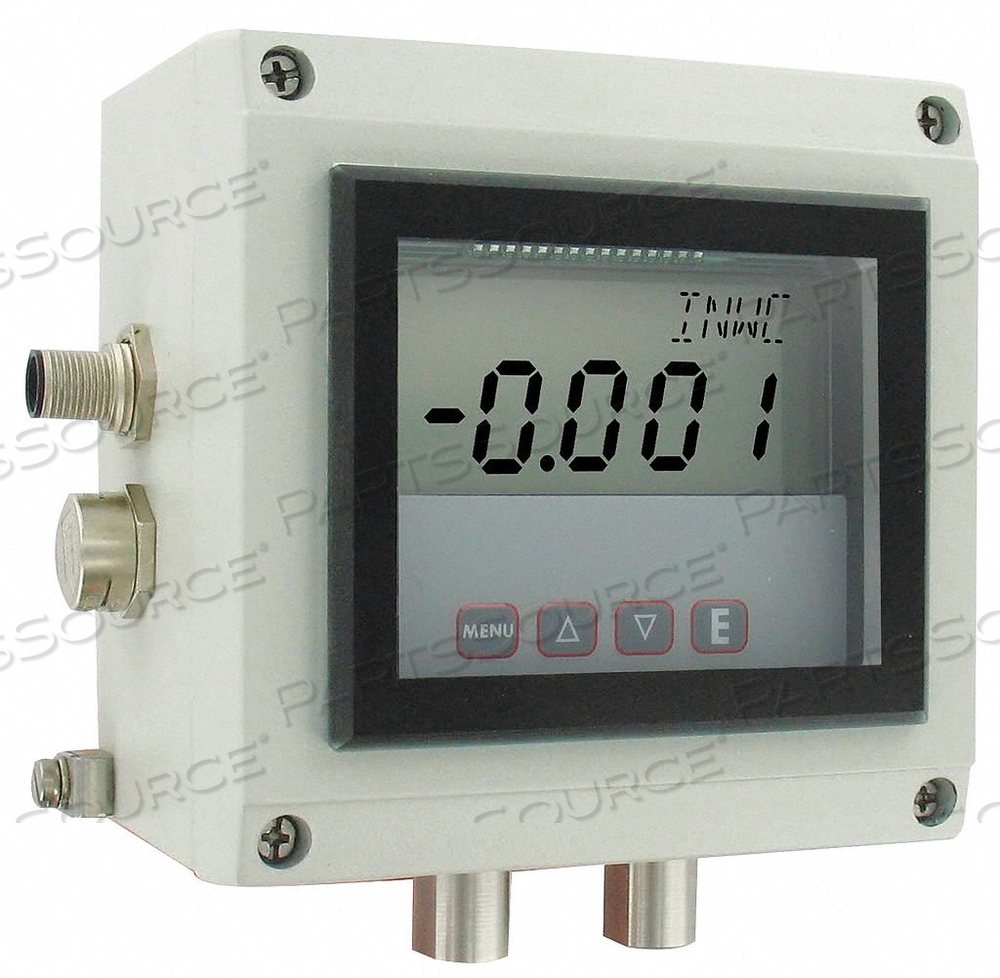

INTRINSICALLY SAFE PRESSURE TRANSDUCER
Condition
New OEM Original
Accuracy - Transmitter
+/-0.50%
Connection Location - Transmitter
Bottom
Display - Transmitter
4 Digit LCD
Electrical Connections - Transmitter
4 Pin M12 Connector
Loop Resistance
0 to 1250 ohms
Operating Temperature - Transmitter
32 Degrees to 104 Degrees F
Output - Transmitter
4 to 20mA DC
Overall Depth - Transmitter
3.44 in
Overall Height - Transmitter
5.43 in
Overall Width - Transmitter
4.72 in
Power Required - Transmitters
10 to 35V DC
Process Connection Size - Transmitter
1/8 in
Process Connection Type - Transmitter
FNPT
Range Units - Transmitter
in wc/in wc
Range Values - Transmitter
-2.5 to 0 to 2.5
Safety Rating - Transmitter
Class I Div. 1 Groups A, B, C, D; Class II Div. 1 Groups E, F, G; Class III Div.1
Shape - Transmitter
Rectangular
Transmitter Type
Intrinsically Safe Differential Transmitter
Wetted Materials - Transmitters
Alumina Ceramic, Aluminum, Epoxy, Glass, Gold, Nickel, PVC, RTV, Silicon, Stainless Steel
Wiring Entry - Transmitter
None
