OEM#: 7A570New OEM Original Outright

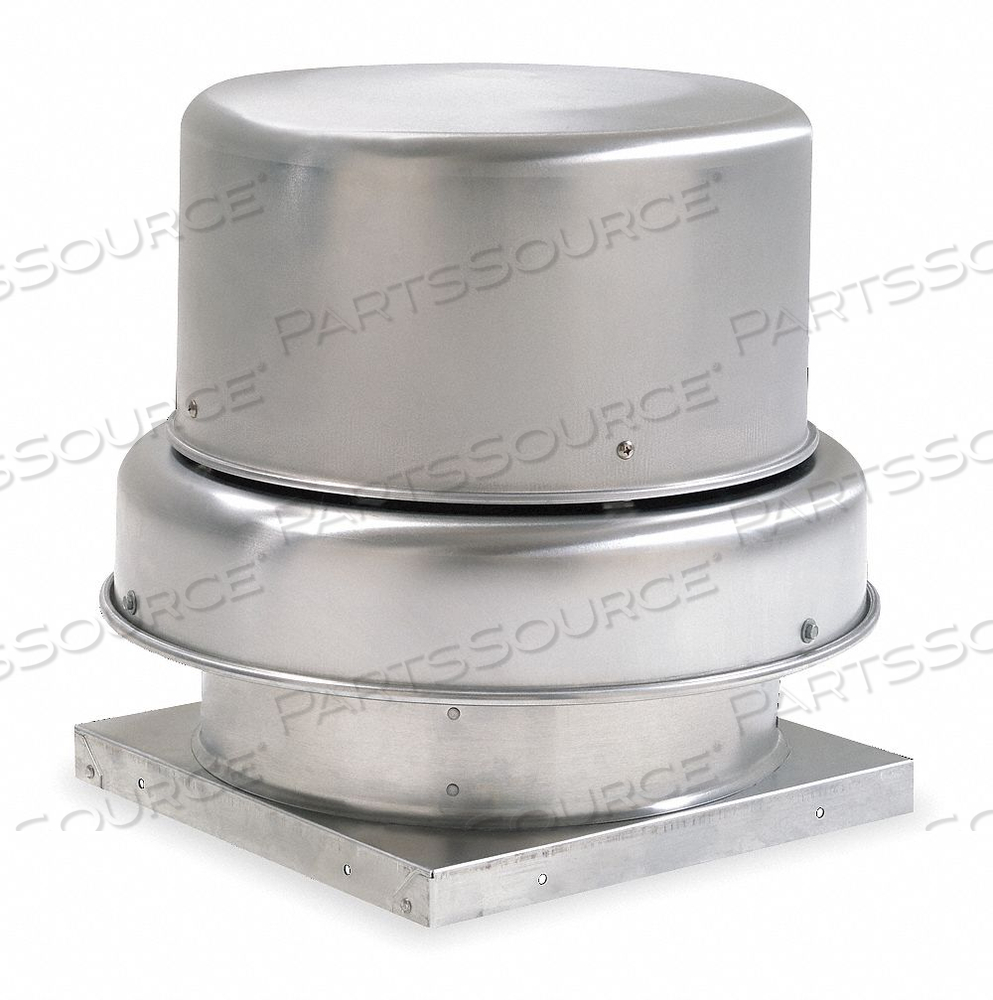

ALU 35.5 DIA 36.2 H ROOF FAN W.MOTOR by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$2,413.49 each $2,441.09 Savings: $27.60 (1%)
Estimated to ship by 01/01 if ordered before 4:30 PM EST
OEM#: 7A570ALU 35.5 DIA 36.2 H ROOF FAN W.MOTOR by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$2,413.49 each
$2,441.09 Savings: $27.60 (1%)
Estimated to ship by 01/01 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 7A570 Key Specs
Item
ALU 35.5 DIA 36.2 H ROOF FAN W.MOTOR
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
7A570
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Adj. 12 3/8"H Roof Curb Stock No.
3C437
Adj. 6 3/8"H Roof Curb Stock No.
4c454
Agency Compliance
AMCA Sound, Air, UL/cUL 705
Assembled/Unassembled
Unassembled
Base Height
1 3/4 in
Base Size - Roof Ventilators
30 in x 30 in
CFM @ 0.000-In. SP
4759
CFM @ 0.125-In. SP
4548
CFM @ 0.250-In. SP
4289
CFM @ 0.375-In. SP
4068
CFM @ 0.500-In. SP
3811
CFM @ 0.625-In. SP
3504
CFM @ 0.750-In. SP
3085
CFM @ 0.875-In. SP
2459
Dimension A
30 in
Dimension B
35 1/2 in
Dimension C
34 3/8 in
Dimension D
5 1/2 in
Drive Package With Motor Included
Yes
Drive Type - Roof Ventilators
Belt Drive
Duty Rating - Roof Ventilators
Standard
Housing Material
Spun Aluminum
Hz
60
Includes
6K376, 3X697, 4YU98, 1VP3458, QT34, AK66
Item - Roof Ventilators
Downblast Ventilator
Max. BHP
0.77
Max. Inlet Temp.
180 Degrees
Motor HP - Roof Ventilators
3/4 hp
Mounting Location - Roof Ventilators
Roof
Number of Speeds
1
Overall Dia.
35 1/2 in
Overall Height
29 3/4 in
Phase
1
RPM
860
Recommended 12 In. Fixed Curb Item No.
4HX49
Recommended 8 In. Fixed Curb Item No.
4HX41
Shaft Dia. Wheel End
3/4 in
Sones @ 0.125-In. SP @ 5 Ft.
13.3
Sones @ 0.250-In. SP @ 5 Ft.
12.9
Sones @ 0.500-In. SP @ 5 Ft.
11.8
Speed Controllable
No
Voltage - Roof Ventilators
115V AC/230V AC
Wheel Dia.
21-1/2 in
Wheel Material
Aluminum
Wheel Type
Backward Inclined Centrifugal
