OEM#: 6K825New OEM Original Outright

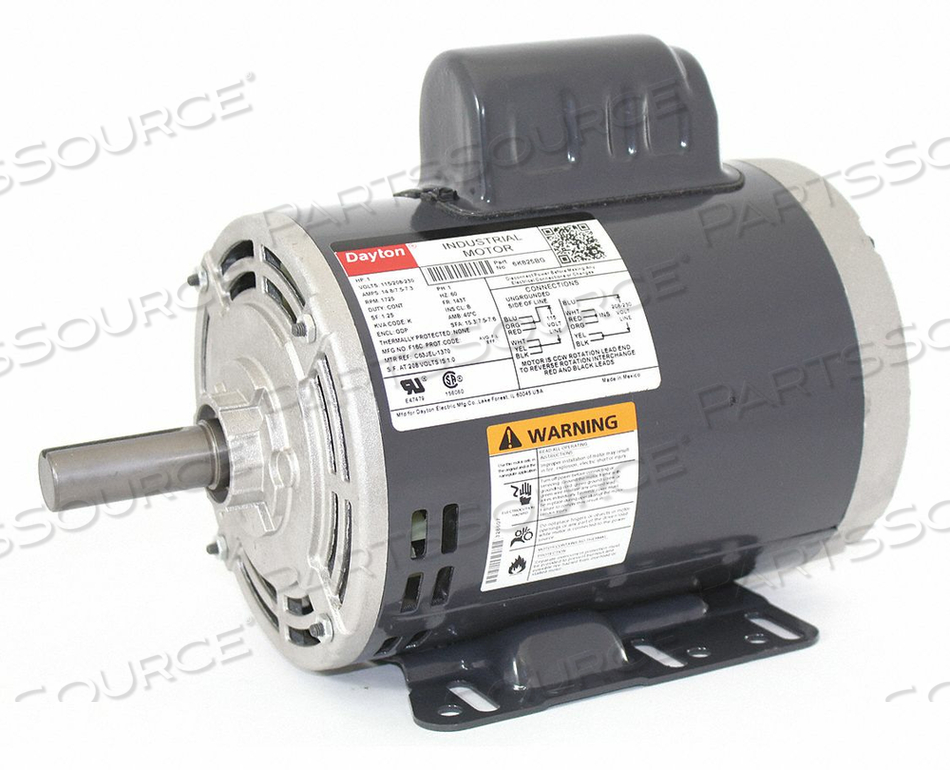

GP MTR CS ODP 1 HP 1725 RPM 143T by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$546.72 each
OEM#: 6K825GP MTR CS ODP 1 HP 1725 RPM 143T by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$546.72 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6K825 Key Specs
Item
GP MTR CS ODP 1 HP 1725 RPM 143T
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6K825
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
143T
Full Load Amps
14.8/7.5-7.3
HP
1
Hz
60
Includes
Conduit Box, Shaft Key
Ins. Class
B
Inverter Rated
No
Length Less Shaft
10 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1725
Nominal Efficiency
71.5 %
Number of Speeds
1
Overall Length
12-1/4 in
Phase
1
Shaft Diameter
7/8 in
Shaft Length
2-1/4 in
Standards
CSA Certified (258501), UL Recognized (E47479)
Voltage
115/208-230
