OEM#: 6K184BGNew OEM Original Outright

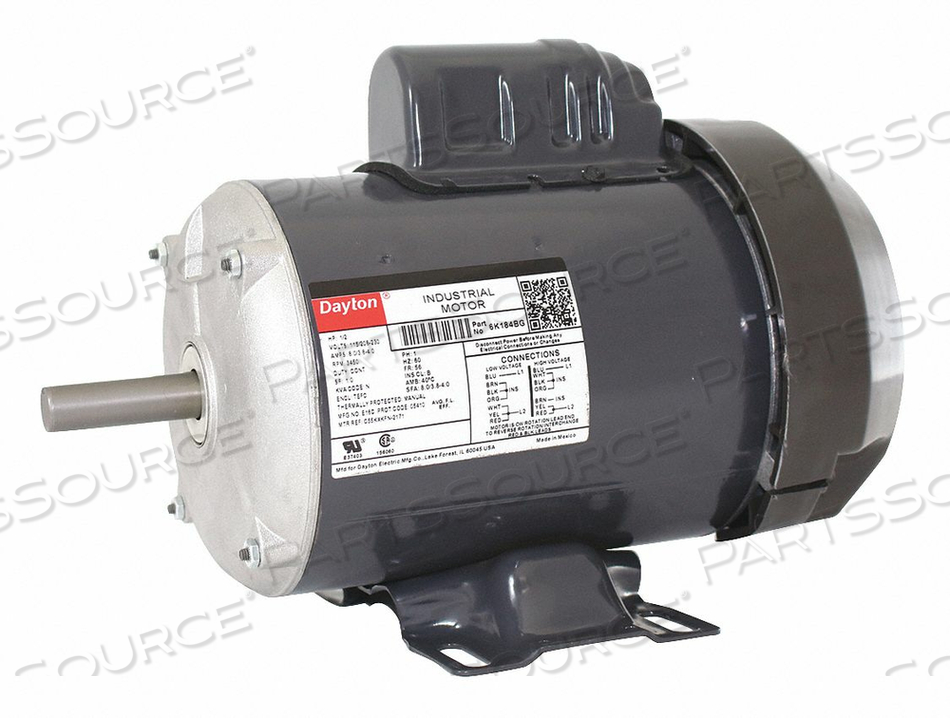

GP MTR CS TEFC 1/2 HP 3450 RPM 56 by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$300.31 eachPast vendor cutoff time. Estimated to ship by 05/14 if ordered before 6:30 PM.
HomeDAYTON ELECTRIC MANUFACTURING CO6k184bg
GP MTR CS TEFC 1/2 HP 3450 RPM 56 by DAYTON ELECTRIC MANUFACTURING CO
GP MTR CS TEFC 1/2 HP 3450 RPM 56 by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 6K184BG
GP MTR CS TEFC 1/2 HP 3450 RPM 56 by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$300.31 each
Ready to shipReady to Ship
Past vendor cutoff time. Estimated to ship by 05/14 if ordered before 6:30 PM.
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 6K184BG Key Specs
Item
GP MTR CS TEFC 1/2 HP 3450 RPM 56
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
6K184BG
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
8/3.8-4
HP
1/2
Hz
60
Includes
Conduit Box, Shaft Key
Ins. Class
B
Length Less Shaft
9-11/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Manual
Nameplate RPM
3450
Nominal Efficiency
65.9 %
Number of Speeds
1
Overall Length
11-9/16 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified (258501), UL Recognized (E37403)
Voltage
115/208-230
