OEM#: 4M205New OEM Original Outright

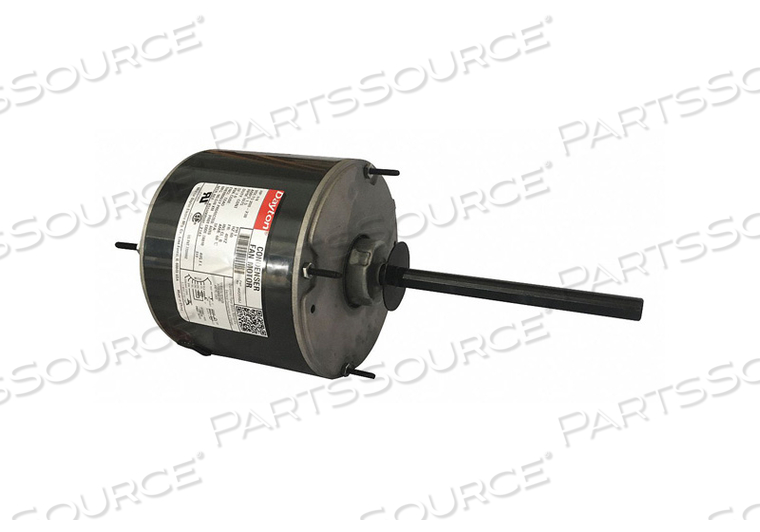

CONDENSER FAN MOTOR 1/4 HP 1075 RPM 60HZ by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$146.20 eachEstimated to ship by 11/28 if ordered before 4:30 PM EST
OEM#: 4M205CONDENSER FAN MOTOR 1/4 HP 1075 RPM 60HZ by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$146.20 each
Estimated to ship by 11/28 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 4M205 Key Specs
Item
CONDENSER FAN MOTOR 1/4 HP 1075 RPM 60HZ
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
4M205
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Direct-Drive Blower
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-1/8 in
Capacitor Required
2MDV4
Duty
Continuous
Frame
48YZ
Full Load Amps
1.5-1.4
HP
1/4 in
Hz
60
Ins. Class
B
Lead Length
30 in
Length Less Shaft
5-7/8 in
Max Ambient Temperature
60 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1075
Number of Speeds
1
Overall Length
9-9/16 in
Phase
1
Shaft Diameter
1/2 in
Shaft Length
6-1/16 in
Standards
CSA Certified (258501), UL Recognized (E47479)
Stud Quantity
4
Stud Size
8-32 NC-2A x 3/4 in
Voltage
208-230
