OEM#: 36VF04New OEM Original Outright

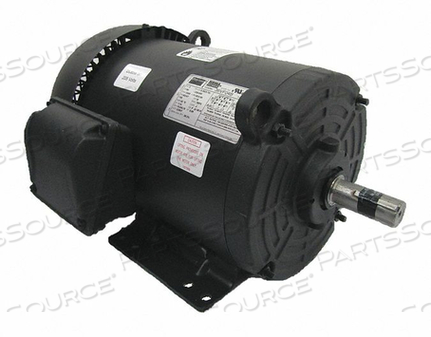

GP MOTOR TEFC 5 HP 3500 RPM 1-1/8IN DIA. by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$964.96 eachEstimated to ship by 11/28 if ordered before 4:30 PM EST
OEM#: 36VF04GP MOTOR TEFC 5 HP 3500 RPM 1-1/8IN DIA. by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$964.96 each
Estimated to ship by 11/28 if ordered before 4:30 PM EST
Asset Information
ADD TO LIST
Technical Specs
P/N: 36VF04 Key Specs
Item
GP MOTOR TEFC 5 HP 3500 RPM 1-1/8IN DIA.
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
36VF04
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC029A
Country of Origin
Mexico
Duty
Continuous
Frame
182/4T
Full Load Amps
11.8/5.9
Green Certification or Other Recognition
NEMA Premium(R) Rated
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
HP
5 hp
Hz
60
Includes
Conduit Box
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
15 5/32 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3500
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
17-15/16 in
Phase
3
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
1-1/8 in
Shaft Length
2-3/4 in
Standards
CE, CSA, UL
Voltage
208-230/460
