OEM#: 2H571New OEM Original Outright

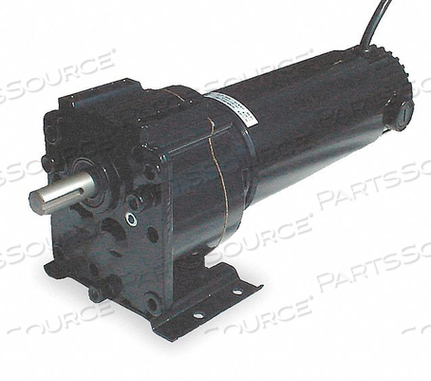

DC GEARMOTOR 350 RPM 90V TENV by DAYTON ELECTRIC MANUFACTURING CO
Your price:
$695.64 eachShip date will be provided after ordering
OEM#: 2H571DC GEARMOTOR 350 RPM 90V TENV by DAYTON ELECTRIC MANUFACTURING CO
New OEM Original Outright
Your price:
$695.64 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: 2H571 Key Specs
Item
DC GEARMOTOR 350 RPM 90V TENV
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
2H571
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearings
Ball on Motor, Needle Throughout with Thrust Balls on Case
Brushes
Externally Replaceable
Full Load Amps
2.51 A
Gear Case
Die Cast Aluminum
Gear Material
Hardened Steel
Gear Ratio
5:1
Gear Type
Helical and Spur
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Mounting Position
All Angle
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
DC Gearmotor
Gearmotor Voltage
90V DC
Housing Material
Die Cast Aluminum
Input HP
1/4
Length Less Shaft
12 1/8 in
Lubrication
Permanent Heavy Fluid Gear Oil
Max. Ambient Temp.
40 Degrees C
Max. Torque
40.0 in-lb
Motor Type
Permanent Magnet DC
Nameplate RPM
350 RPM
Overall Length
13 5/8 in
Overhung Load
170 lb
Rear Shaft Encoder/Pulse Generator Mounting
Yes
Replacement Brushes
6YHZ0
Reversible Shaft Output
No
Seals
Spring Loaded Lip Type on Input and Output Shaft
Shaft Dia. (Dimension U)
5/8"
Shaft Length (Dimension V)
1-1/2"
Standards
C-UL Recognized, UL Recognized
Thermal Protection
None
