OEM#: 1TDN2New OEM Original Outright

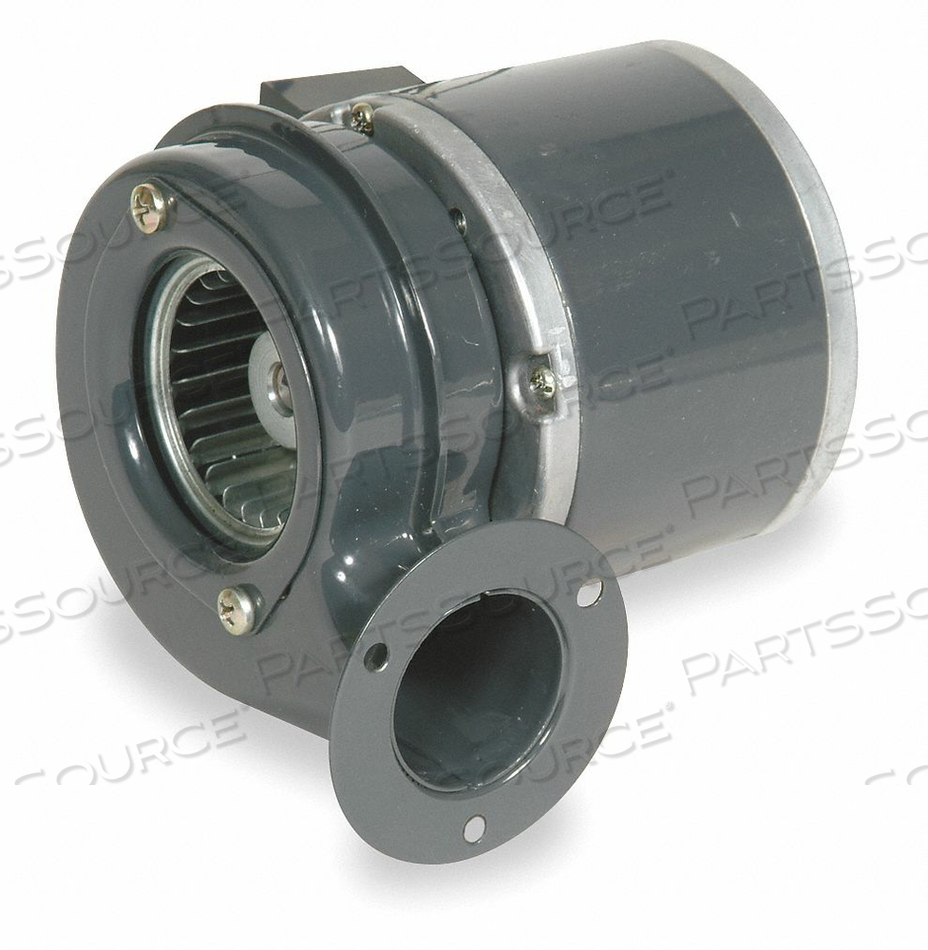

BLOWER 12 CFM 115V 0.08A 3300 RPM by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$98.87 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO1tdn2
BLOWER 12 CFM 115V 0.08A 3300 RPM by DAYTON ELECTRIC MANUFACTURING CO
BLOWER 12 CFM 115V 0.08A 3300 RPM by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 1TDN2
BLOWER 12 CFM 115V 0.08A 3300 RPM by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$98.87 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1TDN2 Key Specs
Item
BLOWER 12 CFM 115V 0.08A 3300 RPM
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1TDN2
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Agency Compliance
cULus Recognized (E47479) for the Motor Only Not the Blower, CE and RoHS Compliance
Bearing Type
Ball
Blower Conduit Box
No
Blower Item
OEM Specialty Blower
Blower Motor Type
Permanent Split Capacitor
Blower Outlet Shape
Round
Blower Thermal Protection
Auto
Blower Voltage
115V AC
Blower Wheel Diameter
2 in
Blower Wheel Width
1-7/8 in
CFM @ 0.000 in SP
12
CFM @ 0.100 in SP
9
CFM @ 0.200 in SP
6
Country of Origin
China
Dimension A
4 in
Dimension B
4-3/16 in
Dimension C
4-1/16 in
Dimension D
1-5/16 in
Dimension E
3-7/8 in
Dimension J
2-1/4 in
Dimension L
1-5/8 in
Dimension M
1-7/16 in
Drive Type
Direct
Full Load Amps
0.08
Housing Color
Gray
Housing Finish
Enamel
Housing Material
Rolled Steel
Hz
50/60
Includes
Discharge Mounting Flange
Inlet Diameter
1-7/8 in
Lead Length
13 in
Max Ambient Temperature
104 Degrees F
Max Inlet Temperature
104 Degrees F
Motor Enclosure
Open
Motor Insulation
Class B
Mounting Position
All Position
Outlet Diameter
1-1/4 in
Overall Depth
4 in
Overall Height
3-7/8 in
Overall Width
3-15/16 in
Phase
1
RPM
3300
Replaces
2C782
Wheel Type
Forward Curve
With Flange
Yes
