OEM#: 1F546New OEM Original Outright

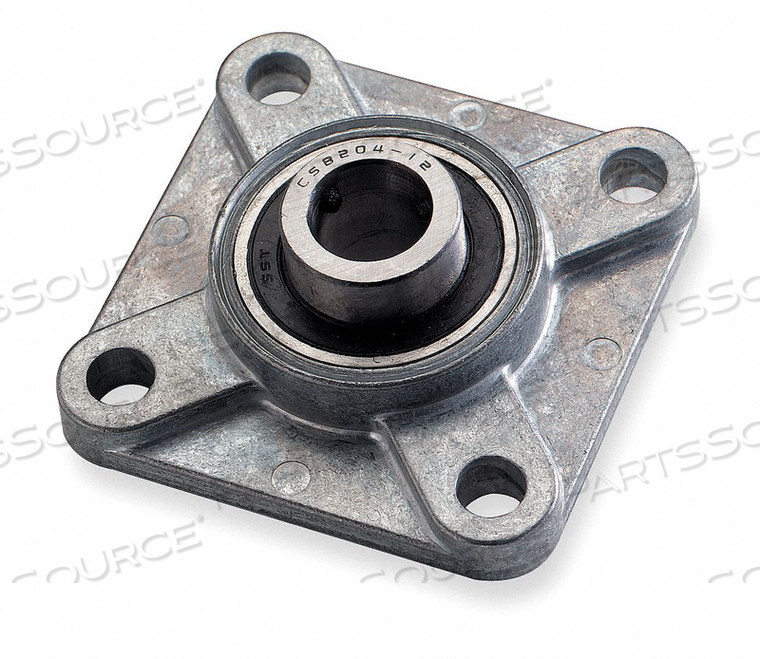

4 BOLT FLANGE BEARING, BEARING INSERT MATERIAL ALLOY STEEL, BEARING INSERT TYPE RADIAL BALL, BORE DIAMETER 1 IN, BORE TYPE CYLINDRICAL, CLOS by DAYTON ELECTRIC MANUFACTURING CO

Your price:
$58.79 eachReady to ship
HomeDAYTON ELECTRIC MANUFACTURING CO1F546
4 BOLT FLANGE BEARING, BEARING INSERT MATERIAL ALLOY STEEL, BEARING INSERT TYPE RADIAL BALL, BORE DIAMETER 1 IN, BORE TYPE CYLINDRICAL, CLOS by DAYTON ELECTRIC MANUFACTURING CO
4 BOLT FLANGE BEARING, BEARING INSERT MATERIAL ALLOY STEEL, BEARING INSERT TYPE RADIAL BALL, BORE DIAMETER 1 IN, BORE TYPE CYLINDRICAL, CLOS by DAYTON ELECTRIC MANUFACTURING CO

OEM#: 1F546
4 BOLT FLANGE BEARING, BEARING INSERT MATERIAL ALLOY STEEL, BEARING INSERT TYPE RADIAL BALL, BORE DIAMETER 1 IN, BORE TYPE CYLINDRICAL, CLOS by DAYTON ELECTRIC MANUFACTURING CO

New OEM Original Outright
Your price:
$58.79 each

4 BOLT FLANGE BEARING, BEARING INSERT MATERIAL ALLOY STEEL, BEARING INSERT TYPE RADIAL BALL, BORE DIAMETER 1 IN, BORE TYPE CYLINDRICAL, CLOSURE DOUBLE SEALED, EXPANSION TYPE FIXED, HOUSING MATERIAL ZINC DIE CAST, HOUSING TYPE SQUARE, LUBRICANT MATERIAL NLGI #2 EQUIVALENT, MAXIMUM SPEED 3,500 RPM, MAXIMUM TEMPERATURE 200 DEGREES F, MINIMUM TEMPERATURE -30 DEGREES F, MOUNT HOLE CENTER-TO-CENTER HEIGHT 2.75 IN, NUMBER OF MOUNT HOLES 4, OVERALL HEIGH

Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 1F546 Key Specs
Item
4 BOLT FLANGE BEARING, BEARING INSERT MATERIAL ALLOY STEEL, BEARING INSERT TYPE RADIAL BALL, BORE DIAMETER 1 IN, BORE TYPE CYLINDRICAL, CLOS
OEM
DAYTON ELECTRIC MANUFACTURING CO
OEM #
1F546
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Zinc Die Cast
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bolt Hole Center-to-Center
2 3/4 in
Bolt Size
7/16 in
Bore Dia.
1 in
Country of Origin
USA
Dimension B
3 3/4 in
Dimension C
2 3/4 in
Dimension D
2 3/8 in
Dimension E
2 3/4 in
Dimension F
1 1/4 in
Dimension H
7/16 in
Dimension J
7/16 in
Dimension L
1 1/4 in
Dynamic Load Capacity
3,153 lb
Finish
None
Includes
(2) Set Screws
Mounted Bearing Item
4-Bolt Flange Bearing
Overall Height
1 1/4 in
Overall Length
3 3/4 in
Overall Width
3 3/4 in
Series
F4DC-BL
Shaft Locking Type
Set Screw
Static Load Capacity
1,768 lb
Temp. Range
-30 Degrees to 200 Degrees F
