OEM#: TV-3SNew OEM Original Outright

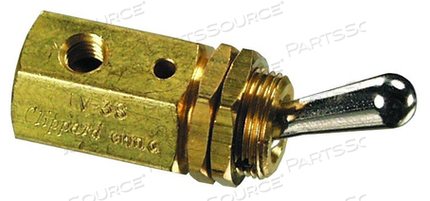

3-WAY TOGGLE VALVE by Clippard

Your price:
$19.13 eachShip date will be provided after ordering
HomeClippardtv3s
3-WAY TOGGLE VALVE by Clippard
3-WAY TOGGLE VALVE by Clippard

OEM#: TV-3S
3-WAY TOGGLE VALVE by Clippard

New OEM Original Outright
Your price:
$19.13 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Product Overview

The function of a 2-Way valve is to turn an air supply on and off. In the "on" position, medium flows from the inlet to the outlet, and in the "off" position, the flow is blocked. 3-Way styles have an exhaust port which vents the outlet to the atmosphere. Available with #10-32 and 1/8 in NPT ports

Features
  • 2-Way, 3-Way, 4-Way 2-Position Spool & Poppet Valves
  • Normally-Open or Normally-Closed
  • Brass Body, Nitrile Seals, Stainless Steel Stem & Spring
  • Steel or Plastic Toggles
Technical Specs
P/N: TV-3S Key Specs
Item
3-WAY TOGGLE VALVE
OEM
Clippard
OEM #
TV-3S
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Actuation
Detented
Air Flow
135 l/min @ 50 psig; 225 l/min @ 100 psig
Body Material
Brass
Force to Rotate Toggle
12 oz. nominal
Function
3-Way Normally-Closed
Includes
Nuts & Lockwashers
Medium
Air; Oil; Water
Mount
#15/32-32 Thread
Operating Pressure
150 psi
Operating Temperature
32 to 230 deg F
Ports
#10-32
Seal Material
Nitrile Std. FKM or Krytox optional
Spring Material
Stainless Steel Stem & Spring
Stem Travel
1/8
Style
Toggle
Weight
0.1000

The function of a 2-Way valve is to turn an air supply on and off. In the "on" position, medium flows from the inlet to the outlet, and in the "off" position, the flow is blocked. 3-Way styles have an exhaust port which vents the outlet to the atmosphere. Available with #10-32 and 1/8 in NPT ports
