OEM#: LA-31New OEM Original Outright

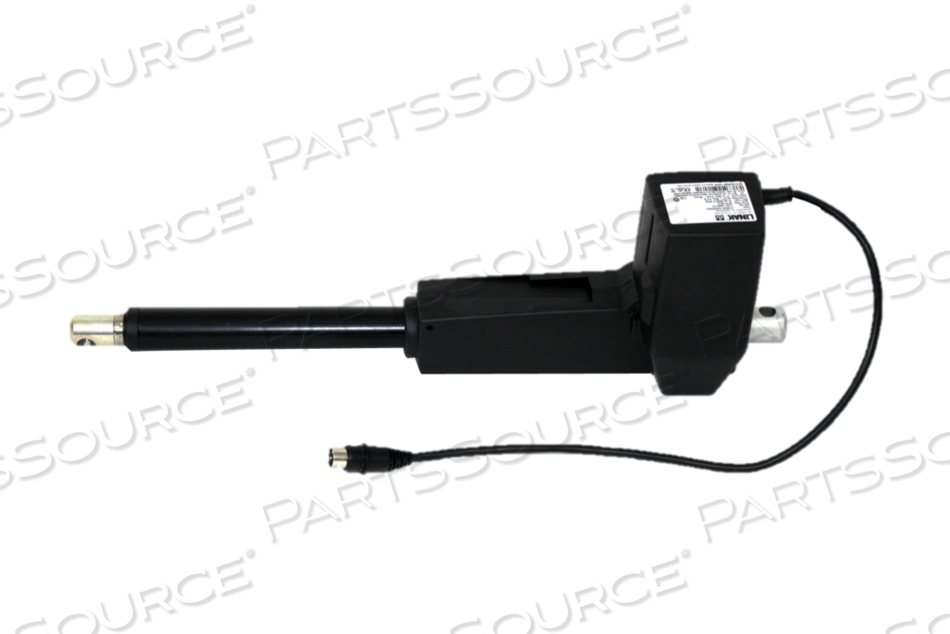

LINAK ACUTUATOR ONLY FOR CB9 POWER SUPPLY by Cardon Rehabilitation
Your price:
$656.40 eachShip date will be provided after ordering
OEM#: LA-31LINAK ACUTUATOR ONLY FOR CB9 POWER SUPPLY by Cardon Rehabilitation
New OEM Original Outright
Your price:
$656.40 each
Ship date will be provided after ordering
Asset Information
Please provide Model & Serial # of Table.
ADD TO LIST
Product Overview
The LA31 actuator is a very quiet and powerful linear actuator desigend for a variety of desk applications ranging from kitchen applications to industrial table purposes. The LA31 actuator fits into very narrow places, as it is very compact. The LA31 is designed for use together with the DESKLINE control boxes CBD4, CBD5 and CBD6 and it either can work as a single actuator or used in parallel drive.
- Thrust up to 3500 n
- Small built-in dimension with short piston rod eye and back fixture
- High-strength plastic housing protects motor and gears
- Straight cable with mini fit connector (0.25 m)
- Built-in limit switches (not adjustable)
- Scratch and wear-resistant powder painting on outer tube ø30mm
- Strong wear and corrosion resistant stainless steel inner tube
- Brake which increases the self-locking to 2500n for la31 with 6mm pitch
- Measuring method ds/en iso 3746
- Hall sensors (24 pulses per spindle revolution) for exact positioning of memory control and compatibility with cbd
Features
- Thrust up to 3500 n
- Hall sensors (24 pulses per spindle revolution) for exact positioning of memory control and compatibility with cbd
- Small built-in dimension with short piston rod eye and back fixture
- High-strength plastic housing protects motor and gears
- Straight cable with mini fit connector (0.25 m)
- Built-in limit switches (not adjustable)
- Scratch and wear-resistant powder painting on outer tube ø30mm
- Strong wear and corrosion resistant stainless steel inner tube
- Brake which increases the self-locking to 2500n for la31 with 6mm pitch
- Measuring method ds/en iso 3746
Technical Specs
P/N: LA-31 Key Specs
Item
LINAK ACUTUATOR ONLY FOR CB9 POWER SUPPLY
OEM
Cardon Rehabilitation
OEM #
LA-31
Condition
New OEM Original
Returnable
No
Warranty
30 Day
Brand Name
Linak
For Use With
For Office Desk, Industrial Workstation, TV Lift, Display and Monitor Stand
Maximum Speed
20mm/sec
Maximum Thrust
3500N
Noise Level
48dbA
Standards
UL 962, EN 60335-1
Stroke Length
500mm
Type
Strong and Low-Noise Linear
The LA31 actuator is a very quiet and powerful linear actuator desigend for a variety of desk applications ranging from kitchen applications to industrial table purposes. The LA31 actuator fits into very narrow places, as it is very compact. The LA31 is designed for use together with the DESKLINE control boxes CBD4, CBD5 and CBD6 and it either can work as a single actuator or used in parallel drive.
- Thrust up to 3500 n
- Small built-in dimension with short piston rod eye and back fixture
- High-strength plastic housing protects motor and gears
- Straight cable with mini fit connector (0.25 m)
- Built-in limit switches (not adjustable)
- Scratch and wear-resistant powder painting on outer tube ø30mm
- Strong wear and corrosion resistant stainless steel inner tube
- Brake which increases the self-locking to 2500n for la31 with 6mm pitch
- Measuring method ds/en iso 3746
- Hall sensors (24 pulses per spindle revolution) for exact positioning of memory control and compatibility with cbd
Product Overview
The LA31 actuator is a very quiet and powerful linear actuator desigend for a variety of desk applications ranging from kitchen applications to industrial table purposes. The LA31 actuator fits into very narrow places, as it is very compact. The LA31 is designed for use together with the DESKLINE control boxes CBD4, CBD5 and CBD6 and it either can work as a single actuator or used in parallel drive.
- Thrust up to 3500 n
- Small built-in dimension with short piston rod eye and back fixture
- High-strength plastic housing protects motor and gears
- Straight cable with mini fit connector (0.25 m)
- Built-in limit switches (not adjustable)
- Scratch and wear-resistant powder painting on outer tube ø30mm
- Strong wear and corrosion resistant stainless steel inner tube
- Brake which increases the self-locking to 2500n for la31 with 6mm pitch
- Measuring method ds/en iso 3746
- Hall sensors (24 pulses per spindle revolution) for exact positioning of memory control and compatibility with cbd
Features
- Thrust up to 3500 n
- Hall sensors (24 pulses per spindle revolution) for exact positioning of memory control and compatibility with cbd
- Small built-in dimension with short piston rod eye and back fixture
- High-strength plastic housing protects motor and gears
- Straight cable with mini fit connector (0.25 m)
- Built-in limit switches (not adjustable)
- Scratch and wear-resistant powder painting on outer tube ø30mm
- Strong wear and corrosion resistant stainless steel inner tube
- Brake which increases the self-locking to 2500n for la31 with 6mm pitch
- Measuring method ds/en iso 3746
Technical Specs
P/N: LA-31 Key Specs
Item
LINAK ACUTUATOR ONLY FOR CB9 POWER SUPPLY
OEM
Cardon Rehabilitation
OEM #
LA-31
Condition
New OEM Original
Returnable
No
Warranty
30 Day
Brand Name
Linak
For Use With
For Office Desk, Industrial Workstation, TV Lift, Display and Monitor Stand
Maximum Speed
20mm/sec
Maximum Thrust
3500N
Noise Level
48dbA
Standards
UL 962, EN 60335-1
Stroke Length
500mm
Type
Strong and Low-Noise Linear
The LA31 actuator is a very quiet and powerful linear actuator desigend for a variety of desk applications ranging from kitchen applications to industrial table purposes. The LA31 actuator fits into very narrow places, as it is very compact. The LA31 is designed for use together with the DESKLINE control boxes CBD4, CBD5 and CBD6 and it either can work as a single actuator or used in parallel drive.
- Thrust up to 3500 n
- Small built-in dimension with short piston rod eye and back fixture
- High-strength plastic housing protects motor and gears
- Straight cable with mini fit connector (0.25 m)
- Built-in limit switches (not adjustable)
- Scratch and wear-resistant powder painting on outer tube ø30mm
- Strong wear and corrosion resistant stainless steel inner tube
- Brake which increases the self-locking to 2500n for la31 with 6mm pitch
- Measuring method ds/en iso 3746
- Hall sensors (24 pulses per spindle revolution) for exact positioning of memory control and compatibility with cbd
Product Overview
The LA31 actuator is a very quiet and powerful linear actuator desigend for a variety of desk applications ranging from kitchen applications to industrial table purposes. The LA31 actuator fits into very narrow places, as it is very compact. The LA31 is designed for use together with the DESKLINE control boxes CBD4, CBD5 and CBD6 and it either can work as a single actuator or used in parallel drive.
- Thrust up to 3500 n
- Small built-in dimension with short piston rod eye and back fixture
- High-strength plastic housing protects motor and gears
- Straight cable with mini fit connector (0.25 m)
- Built-in limit switches (not adjustable)
- Scratch and wear-resistant powder painting on outer tube ø30mm
- Strong wear and corrosion resistant stainless steel inner tube
- Brake which increases the self-locking to 2500n for la31 with 6mm pitch
- Measuring method ds/en iso 3746
- Hall sensors (24 pulses per spindle revolution) for exact positioning of memory control and compatibility with cbd
Features
- Thrust up to 3500 n
- Hall sensors (24 pulses per spindle revolution) for exact positioning of memory control and compatibility with cbd
- Small built-in dimension with short piston rod eye and back fixture
- High-strength plastic housing protects motor and gears
- Straight cable with mini fit connector (0.25 m)
- Built-in limit switches (not adjustable)
- Scratch and wear-resistant powder painting on outer tube ø30mm
- Strong wear and corrosion resistant stainless steel inner tube
- Brake which increases the self-locking to 2500n for la31 with 6mm pitch
- Measuring method ds/en iso 3746
How can we
improve our item listing
?Technical Specs
P/N: LA-31 Key Specs
Item
LINAK ACUTUATOR ONLY FOR CB9 POWER SUPPLY
OEM
Cardon Rehabilitation
OEM #
LA-31
Condition
New OEM Original
Returnable
No
Warranty
30 Day
Brand Name
Linak
For Use With
For Office Desk, Industrial Workstation, TV Lift, Display and Monitor Stand
Maximum Speed
20mm/sec
Maximum Thrust
3500N
Noise Level
48dbA
Standards
UL 962, EN 60335-1
Stroke Length
500mm
Type
Strong and Low-Noise Linear
The LA31 actuator is a very quiet and powerful linear actuator desigend for a variety of desk applications ranging from kitchen applications to industrial table purposes. The LA31 actuator fits into very narrow places, as it is very compact. The LA31 is designed for use together with the DESKLINE control boxes CBD4, CBD5 and CBD6 and it either can work as a single actuator or used in parallel drive.
- Thrust up to 3500 n
- Small built-in dimension with short piston rod eye and back fixture
- High-strength plastic housing protects motor and gears
- Straight cable with mini fit connector (0.25 m)
- Built-in limit switches (not adjustable)
- Scratch and wear-resistant powder painting on outer tube ø30mm
- Strong wear and corrosion resistant stainless steel inner tube
- Brake which increases the self-locking to 2500n for la31 with 6mm pitch
- Measuring method ds/en iso 3746
- Hall sensors (24 pulses per spindle revolution) for exact positioning of memory control and compatibility with cbd
