OEM#: 026-720A0100New OEM Original Outright

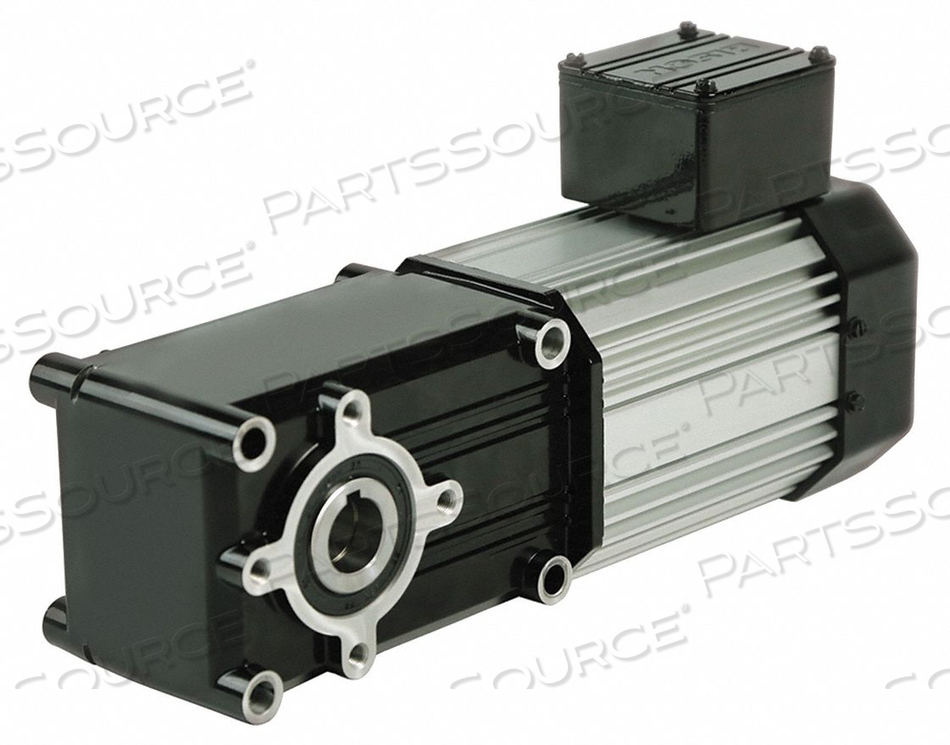

HYPOID GEARMOTOR 16.8 RPM TEFC 115V by Bison
Your price:
$1,337.35 each
OEM#: 026-720A0100HYPOID GEARMOTOR 16.8 RPM TEFC 115V by Bison
New OEM Original Outright
Your price:
$1,337.35 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 026-720A0100 Key Specs
Item
HYPOID GEARMOTOR 16.8 RPM TEFC 115V
OEM
Bison
OEM #
026-720A0100
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearings
Ball
Capacitor Required
24MA48
Finish
Painted
Full Load Amps
1.70
Gear Case Material
Die Cast Aluminum
Gear Material
Steel
Gear Ratio
100:1
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Mounting Position
All Angle
Gearmotor Phase
1
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Right Angle
Gearmotor Shaft Type
Hollow
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
115V AC
Gears
Steel
Housing
Die Cast Aluminum
Hz
60 Hz
Input HP
1/8 hp
Insulation Class
F
Keyway Size Type
3/16 sq in x 3/16 in
Length Less Shaft
13 1/16 in
Lubrication
PowerSTAR EP
Max. Ambient Temp.
40 Degrees C
Max. Torque
365.0 in-lb
Motor Type
PSC
Nameplate RPM
16.8 RPM
No Load RPM
17.2 RPM
Overall Length
14.14 in
Overhung Load
525 lb
Reversible Shaft Output
Yes
Seals
Double Lip Output
Shaft Dia. (Dimension U)
3/4 in
Standards
UL Recognized, C-UL Recognized, CE Certified
Thermal Protection
None
