OEM#: 021-725D0050New OEM Original Outright

DC GEARMOTOR 90VDC 36 RPM 1/5 HP 50 1 by Bison

Your price:
$1,115.81 eachShip date will be provided after ordering
HomeBison021725d0050

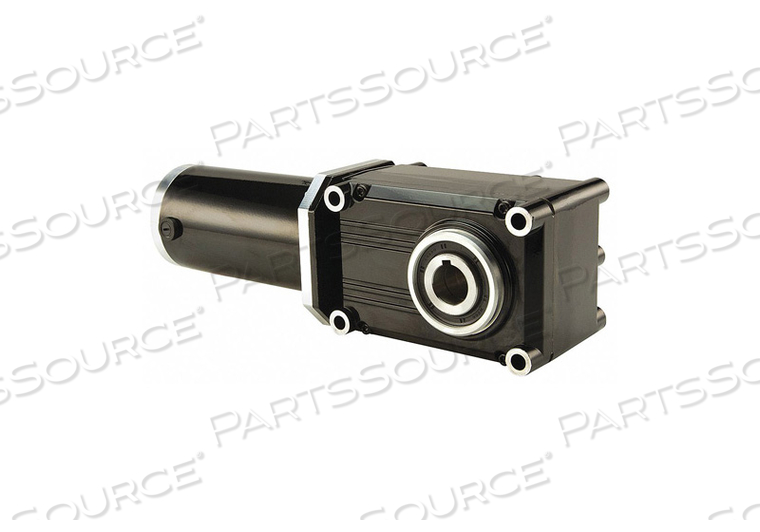

DC GEARMOTOR 90VDC 36 RPM 1/5 HP 50 1 by Bison
DC GEARMOTOR 90VDC 36 RPM 1/5 HP 50 1 by Bison

OEM#: 021-725D0050
DC GEARMOTOR 90VDC 36 RPM 1/5 HP 50 1 by Bison

New OEM Original Outright
Your price:
$1,115.81 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: 021-725D0050 Key Specs
Item
DC GEARMOTOR 90VDC 36 RPM 1/5 HP 50 1
OEM
Bison
OEM #
021-725D0050
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Agriculture, Conveyors, Food and Beverage Equipment, Industrial Machinery, Packaging
Bearings
Ball
Brushes
Externally Replaceable
Finish
Powdered Coat
Full Load Amps
2.24 A
Gear Case
Die Cast Aluminum
Gear Material
Steel
Gear Ratio
50:1
Gear Type
Hypoid
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Mounting Position
All Angle
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Right Angle
Gearmotor Shaft Type
Hollow
Gearmotor Type
DC Gearmotor
Gearmotor Voltage
90V DC
Housing Material
Steel
Input HP
1/5
Insulation Class
F
Lubrication
Grease
Max. Ambient Temp.
40 Degrees C
Max. Torque
277.0 in-lb
Motor Type
Permanent Magnet DC
Nameplate RPM
35 RPM
No Load RPM
36 RPM
Overall Length
14 1/64 in
Overhung Load
550 lb
Rear Shaft Encoder/Pulse Generator Mounting
No
Reversible Shaft Output
Yes
Seals
Lip Type
Shaft Dia. (Dimension U)
1"
Standards
C-UL Recognized, UL Recognized
Thermal Protection
None
