OEM#: 017-260-0019New OEM Original Outright

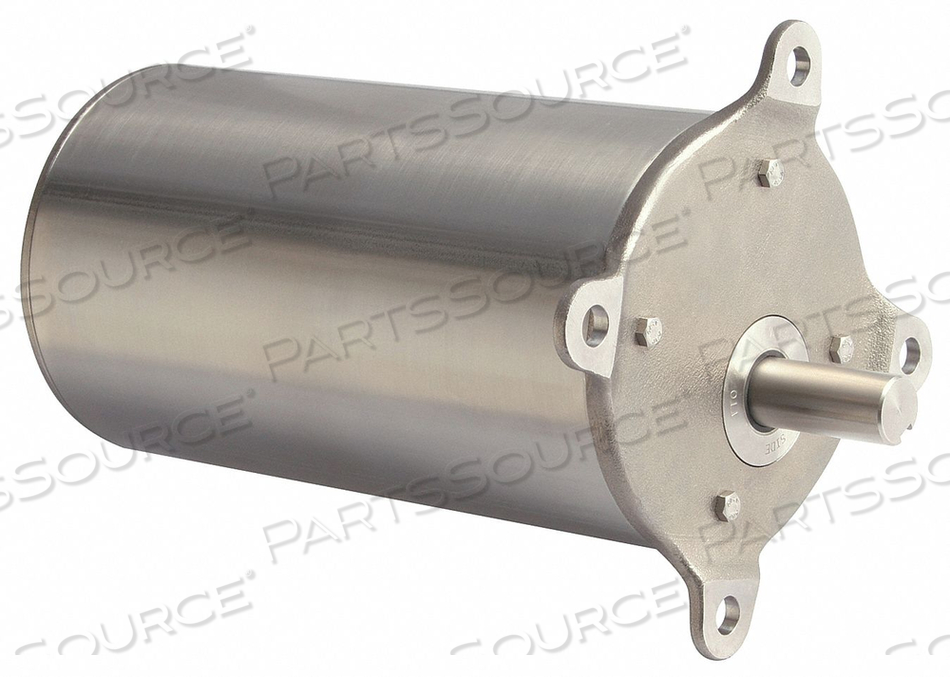

AC GEARMOTOR 91 RPM TENV 230V by Bison
Your price:
$1,823.06 eachShip date will be provided after ordering
OEM#: 017-260-0019AC GEARMOTOR 91 RPM TENV 230V by Bison
New OEM Original Outright
Your price:
$1,823.06 each
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: 017-260-0019 Key Specs
Item
AC GEARMOTOR 91 RPM TENV 230V
OEM
Bison
OEM #
017-260-0019
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Washdown
Bearings
Sealed Ball
Finish
Unpainted
Full Load Amps
0.5
Gear Case Material
304 Stainless Steel
Gear Material
Steel
Gear Ratio
19:1
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Nonventilated
Gearmotor Mounting Position
All Angle
Gearmotor Phase
3
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Parallel
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
230V AC
Gears
Steel
Housing
304 Stainless Steel
Hz
60 Hz
Includes
2m Straight Connector Power Cord
Input HP
1/8 hp
Insulation Class
F
Keyway Size Type
6mm Square x 25mm
Length Less Shaft
223.0 mm
Lubrication
Food-Grade Grease
Max. Ambient Temp.
40 Degrees C
Max. Torque
70.0 in-lb
Motor Type
3-Phase
Nameplate RPM
91 RPM
No Load RPM
98 RPM
Overall Length
263.2 mm
Overhung Load
300 lb
RPM @ 50 Hz
61 RPM
Reversible Shaft Output
Yes
Seals
Triple Lip Cartridge Seal With Stainless Slinger
Shaft Dia. (Dimension U)
20 mm
Shaft Length (Dimension V)
40 mm
Standards
UL Listed/CuRus/ROHS
Starting Torque
398 in-lb
Thermal Protection
None
