OEM#: AFB24New OEM Original Outright

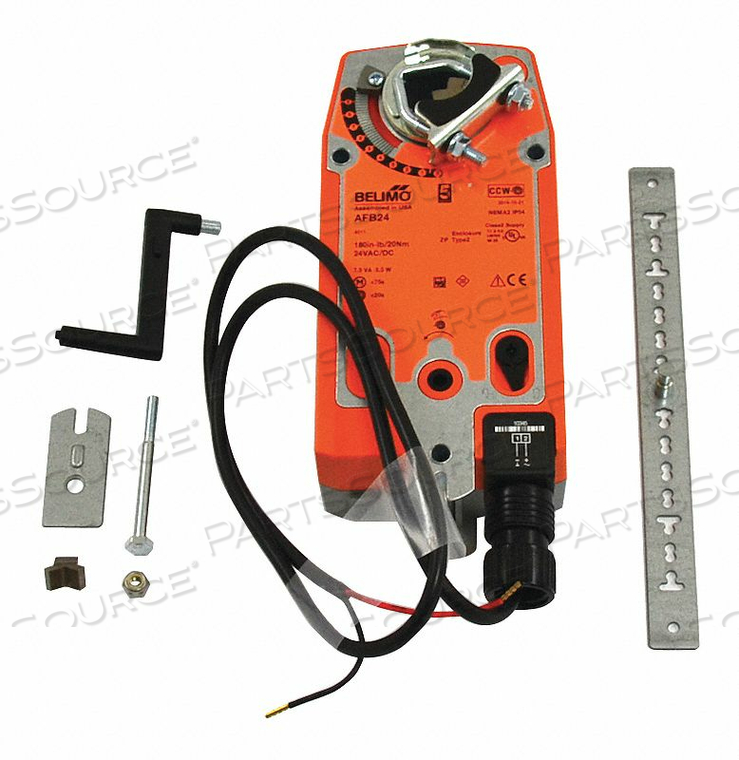

US SPR.RTN.ACT 24V 180 IN-LB (15 NM) ON-OFF REPLACES AF24 US by Belimo

Your price:
$414.69 each
$439.84 Savings: $25.15 (6%)
Ready to ship
HomeBelimoAFB24
US SPR.RTN.ACT 24V 180 IN-LB (15 NM) ON-OFF REPLACES AF24 US by Belimo
US SPR.RTN.ACT 24V 180 IN-LB (15 NM) ON-OFF REPLACES AF24 US by Belimo

OEM#: AFB24
US SPR.RTN.ACT 24V 180 IN-LB (15 NM) ON-OFF REPLACES AF24 US by Belimo

New OEM Original Outright
Your price:
$414.69 each
$439.84 Savings: $25.15 (6%)
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: AFB24 Key Specs
Item
US SPR.RTN.ACT 24V 180 IN-LB (15 NM) ON-OFF REPLACES AF24 US
OEM
Belimo
OEM #
AFB24
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Angle of Rotation
95 Degree
Application
HVAC System
Approval
UL (Canada and US), UL 60730, CE, CAN/CSA E60730, ISO 9001
Body Material
Zinc Coated Metal, Plastic Casing
Enclosure
NEMA 2, IP54
Frequency Rating
50/60 Hertz
Maximum AC Voltage
24 Volt
Maximum DC Voltage
24 Volt
Operating Temperature
-22 to 122 Deg F
Operation Type
Spring Return
Power Rating
5 Watt (Running), 2.5 Watt (Holding)
Seriesmodel
AFB
Shaft Diameter
1/2 to 1.05 Inch
Size
3.15 Inch Width x 3.42 Inch Depth x 9.69 Inch Height
Supply Connection Size
3 Foot 18 AWG Appliance Cable with 1/2 Inch Conduit Connector
Torque
180 Inch-Pound
Type
ON/OFF, Direct Coupled
Voltage Rating
24 Volt AC/DC
