OEM#: USP-50SPNew OEM Original Outright

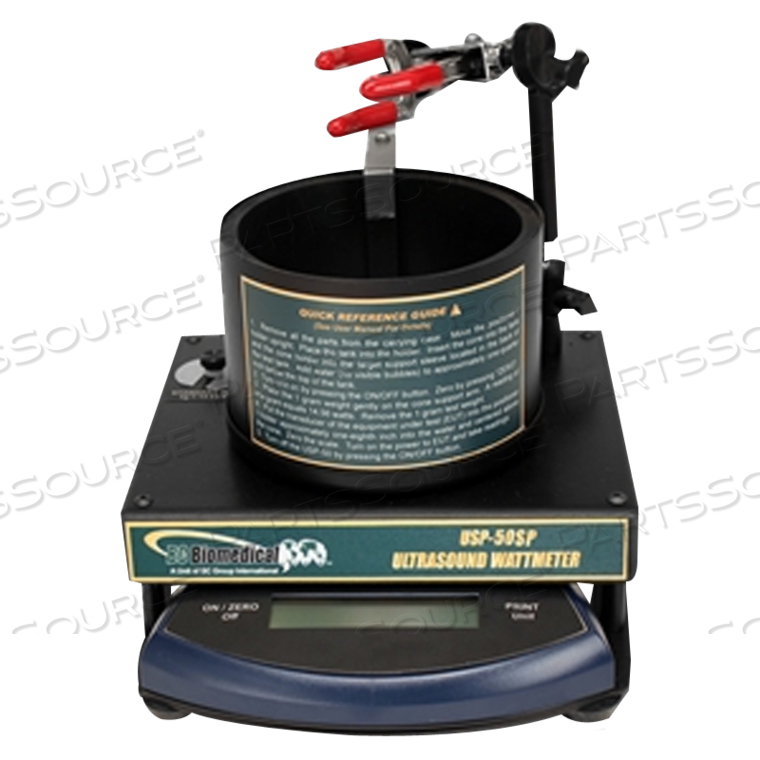

120 - 12V 0.5 - 10MHZ 50MW DIGITAL/PORTABLE WATTMETER by BC Group International, Inc. (BC Biomedical)
Your price:
$4,359.20 eachEstimated to ship by 01/06 if ordered before 11:30 AM EST
OEM#: USP-50SP120 - 12V 0.5 - 10MHZ 50MW DIGITAL/PORTABLE WATTMETER by BC Group International, Inc. (BC Biomedical)
New OEM Original Outright
Your price:
$4,359.20 each
Estimated to ship by 01/06 if ordered before 11:30 AM EST
Asset Information
ADD TO LIST
Product Overview
The most reliable and repeatable means of measuring ultrasound power is by the radiation force method. The transducer to be tested is centered above a 45° air-backed cone target in de-gassed water. The coupling is made to a precision balance capable of resolving ± 0.15 watts. When acoustic energy is applied to the cone, the resultant force is directly proportional to the total radiated power. The test tank is lined with sonic absorbent rubber to prevent acoustic reflection. The balance is programmed to convert milligram magnitude forces direct to a readout in watts with good resolution. Measurement accuracy of the power meter can be verified by placing a calibrated weight on the cone’s support arm.
- Measures pulsed or continuous power
- Selectable readout in watts or grams
- Battery or line powered
- Digital liquid crystal display
- Optional RS-232 or USB interface
- Automatic zeroing & stabilization
- Five point certification

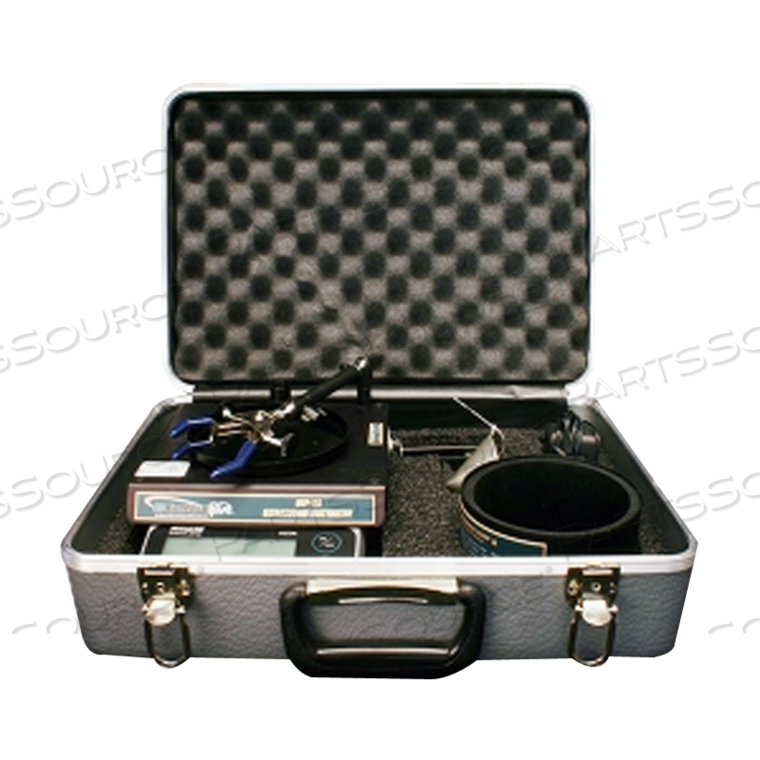

Includes:
- Poly case black
- Universal power supply
- 1 gram cal weight
- NIST traceable calibration certificate
Technical Specs
P/N: USP-50SP Key Specs
Item
120 - 12V 0.5 - 10MHZ 50MW DIGITAL/PORTABLE WATTMETER
OEM
BC Group International, Inc. (BC Biomedical)
OEM #
USP-50SP
Condition
New OEM Original
Returnable
Yes
Warranty
12 Month
Accuracy
± 3%
Amps
0.01 A
Battery Life
40 H
Battery Size
AA
Cord Length
6 FT
Diameter
4.5 IN
Display Size
0.6 IN
Display Type
LCD
Frequency Range
0.5 - 10 MHZ
Length
10.5 IN
Number of Batteries
4
Stabilization Time
2.5 S
Temperature
2°C
Volts
12 V
Watts
30 W
The most reliable and repeatable means of measuring ultrasound power is by the radiation force method. The transducer to be tested is centered above a 45° air-backed cone target in de-gassed water. The coupling is made to a precision balance capable of resolving ± 0.15 watts. When acoustic energy is applied to the cone, the resultant force is directly proportional to the total radiated power. The test tank is lined with sonic absorbent rubber to prevent acoustic reflection. The balance is programmed to convert milligram magnitude forces direct to a readout in watts with good resolution. Measurement accuracy of the power meter can be verified by placing a calibrated weight on the cone’s support arm.
- Measures pulsed or continuous power
- Selectable readout in watts or grams
- Battery or line powered
- Digital liquid crystal display
- Optional RS-232 or USB interface
- Automatic zeroing & stabilization
- Five point certification
Includes:
- Poly case black
- Universal power supply
- 1 gram cal weight
- NIST traceable calibration certificate
