OEM#: SA-2010SNew OEM Original Outright

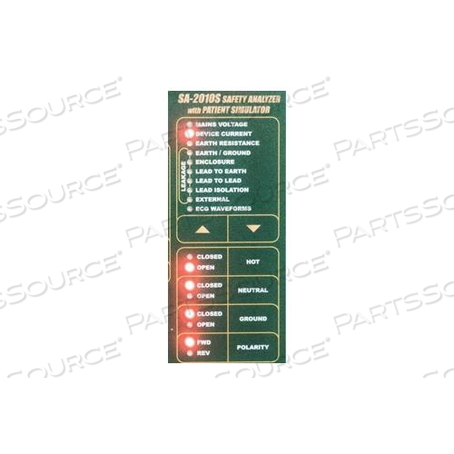

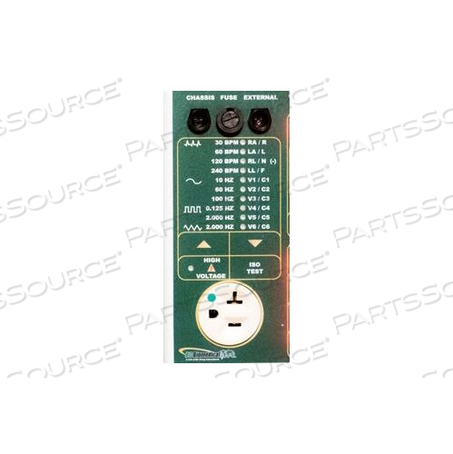

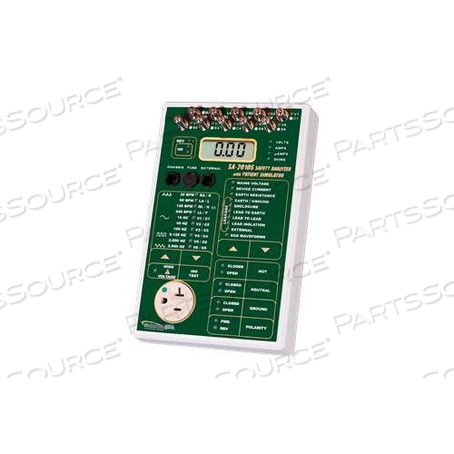

10 PT. LEADS SAFETY ANALYZER WITH ECG SIMULATOR by BC Group International, Inc. (BC Biomedical)
Your price:
$3,597.34 eachEstimated to ship by 12/30 if ordered before 11:30 AM EST
OEM#: SA-2010S10 PT. LEADS SAFETY ANALYZER WITH ECG SIMULATOR by BC Group International, Inc. (BC Biomedical)
New OEM Original Outright
Your price:
$3,597.34 each
Estimated to ship by 12/30 if ordered before 11:30 AM EST
Asset Information
ADD TO LIST
Product Overview
The microprocessor-based electrical safety analyzer with a built-in patient simulator. It allows for a multitude of tests to be performed on a device using the same unit and lead connections. It provides a full electrical safety analyzer, as well as ECG Simulation with four waveforms with constant QRS duration and six machine performance testing waveforms. There is Patient Lead testing for 10 inputs.
- Led status indicators
- Audio feedback
- Touch control keys – no knobs
- 10 universal patient lead inputs
- High impact plastic case
Safety Analyzer Capabilities:
- Line voltage measurement
- Device under test current measurement
- Earth / ground lead resistance
- Earth / ground leakage current
- Enclosure / chassis leakage current
- External resistance
- External leakage current
- Source receptacle wiring integrity monitor
- True RMS measurements
- AAMI ES1-1993 or IEC 601 selectable test loads
- 90 to 264 VAC operation
- Full 20 amp rating
- Self test points
- Externally replaceable ground fuse
- Automatic load reversal delay
- Patient lead to lead leakage current
- Patient lead to earth / ground leakage current
- Patient isolation leakage current
- External isolation leakage current
Patient Simulator Capabilities:
- Sine: 10, 60 And 100 Hz
- ECG: 30, 60, 120 AND 240 BPM
- Square: 0.125 AND 2.0 Hz
- Triangle: 2 Hz
- High level output (1 V p-p)
- Amplitude accuracy: +/- 2%
- Frequency accuracy: +/- 0.5%
Includes:
- Soft Case
- Chassis Cable - 8' Black
- Spare Fuse
Features
- Small Self Contained Package
- Line Voltage Measurement
Technical Specs
P/N: SA-2010S Key Specs
Item
10 PT. LEADS SAFETY ANALYZER WITH ECG SIMULATOR
OEM
BC Group International, Inc. (BC Biomedical)
OEM #
SA-2010S
Condition
New OEM Original
Returnable
Yes
Warranty
12 Month
Certification
NIST Traceable
Current
20 A
Current Rating
20 A
Leakage Current
0 to 1999
MAP(Isolation)
Yes
Open Line
Yes
Open Netural
Yes
Patient Leads
10
Resistance
0 to 19.99 (±1% R) 10 MA
Reverse Polarity
Yes
Voltage Rating
85 to 265 V
Volts
85 to 265 V
