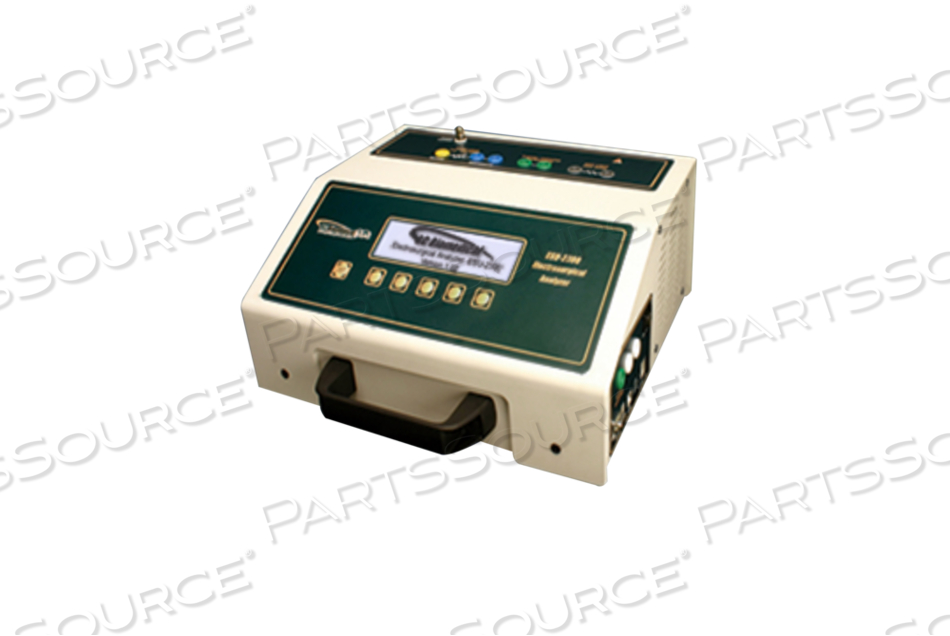

ESU ANALYZER HIGH ACCURACY PORTABLE INTERNAL LOADS by BC Group International, Inc. (BC Biomedical)

The Electrosurgical Analyzer. The measurement engine of the ESU is an specially-engineered true-RMS RF ammeter and wattmeter, designed to measure the complex RF waveforms produced by electrosurgical generators. The ESU has been designed to comply with electrosurgical manufacturer industry standard current sensing technology and utilizes an internal precision RF Current Transformer. The analyzer utilizes a precision internal test load resistor network. The ESU is intended to be routinely used to measure the various parameters relating to the testing and performance validation of electrosurgical generators. DFA Technology allows the ESU to aggressively digitize the complex electrosurgical generator waveform, analyze its components and provide accurate and stable results. It may be used as a stand-alone meter or in conjunction with a PC utilizing the optional software.

• Measurements via Industry Standard Current Sensing Method
• Built-In RF Current Transformer Pearson
• True RMS Readings Using DFA Technology
• Performs Output, RF Leakage & CQM Tests
• Main Test Loads from 50 to 750 Ohms
• External Test Loads Supported
• Auxiliary Test Load – 200 Ohms
• Independent Variable CQM Test Load –1 to 500 Ohms
• Non-Inductive Internal Load Resistors
• Bright-White Display Backlight
• Rechargeable Battery or Line Powered Operation
• Isolated Oscilloscope Output
• Full Remote Operation
• USB & RS232 Serial Ports
• Digital Battery Monitor
• Flash Programmable, Field Upgradeable
• Tactile Keys With Audible Feedback
• Graphical Display with Backlighting & Simultaneous Details of Parameters & Scrolling Option Control
• Tactile keys with audio feedback
• Selectable display options
• Internal rechargeable battery allows operation independent of line power
• 2.5% of reading accuracy on RF current (mA)
• 5% of reading accuracy on RF power (watts)
• Industry standard current sensing technology
• True RMS readings using patent pending DFA technology
• Main Test Load Range 50 to 750 Ohms
• Main Test Load Range Resolution 50 Ohms
• Main Test Load Range Accuracy ± 1% (DC)
• Main Test Load Range Duty Cycle 50% (1 minute Period)
• Auxiliary Test Load Fixed 200 Ohms
• Auxiliary Test Load Accuracy ± 1% (DC)
• Auxiliary Test Load Rating 225 Watts
• Power Supply Kycon 3 position locking connector(9 VDC 3A Output)
• Oscilloscope Output Isolated (uncalibrated), BNC Connector
• Operating Range 15 to 35 Degrees C
• Storage Range -20 to 60 Degrees C
• Humidity Limit 90% Non-Condensing
• Memory Retention 10 years w/o Power

Includes:

• ESU-2300 Accessory Kit
• Power Supply - Universal 100-240V
• Communication Cable - USB
• Communication Cable - RS23
• NIST Traceable Calibration Certificate

• Selectable display options, Tactile keys with audio feedback
• True RMS readings using patent pending DFA® technology, Industry standard current sensing technology
• mV, mV peak, crest factor and power (wattage) ranges, RF current (mA) and power (watts) can be displayed
• Internal precision load resistor network: 50 ohms to 750 ohms in 50 ohm increments External load resistor capability-uses the external resistor value as a discrete value or add it to any internal load resistor value
• 2.5% of reading accuracy on RF current (mA), 5% of reading accuracy on RF power (watts)
• Internal load resistor network is cooled with temperature and power controlled cooling fan, Uses an internal 0.1:1 ratio precision RF current transformer
• Independent CQM (REM/ARM) resistor network: 1 ohm to 500 ohms in 1 ohm increments, RF leakage measurements through 200 W test load
• Internal rechargeable battery allows operation independent of line power, Large graphics display with cursor selection of options and setup of parameters
• Digital data output via USB, Remote capabilities using RS-232 and USB
• PC based interface program optional, Digital calibration-no pots to turn

The Electrosurgical Analyzer. The measurement engine of the ESU is an specially-engineered true-RMS RF ammeter and wattmeter, designed to measure the complex RF waveforms produced by electrosurgical generators. The ESU has been designed to comply with electrosurgical manufacturer industry standard current sensing technology and utilizes an internal precision RF Current Transformer. The analyzer utilizes a precision internal test load resistor network. The ESU is intended to be routinely used to measure the various parameters relating to the testing and performance validation of electrosurgical generators. DFA Technology allows the ESU to aggressively digitize the complex electrosurgical generator waveform, analyze its components and provide accurate and stable results. It may be used as a stand-alone meter or in conjunction with a PC utilizing the optional software.

• Measurements via Industry Standard Current Sensing Method
• Built-In RF Current Transformer Pearson
• True RMS Readings Using DFA Technology
• Performs Output, RF Leakage & CQM Tests
• Main Test Loads from 50 to 750 Ohms
• External Test Loads Supported
• Auxiliary Test Load – 200 Ohms
• Independent Variable CQM Test Load –1 to 500 Ohms
• Non-Inductive Internal Load Resistors
• Bright-White Display Backlight
• Rechargeable Battery or Line Powered Operation
• Isolated Oscilloscope Output
• Full Remote Operation
• USB & RS232 Serial Ports
• Digital Battery Monitor
• Flash Programmable, Field Upgradeable
• Tactile Keys With Audible Feedback
• Graphical Display with Backlighting & Simultaneous Details of Parameters & Scrolling Option Control
• Tactile keys with audio feedback
• Selectable display options
• Internal rechargeable battery allows operation independent of line power
• 2.5% of reading accuracy on RF current (mA)
• 5% of reading accuracy on RF power (watts)
• Industry standard current sensing technology
• True RMS readings using patent pending DFA technology
• Main Test Load Range 50 to 750 Ohms
• Main Test Load Range Resolution 50 Ohms
• Main Test Load Range Accuracy ± 1% (DC)
• Main Test Load Range Duty Cycle 50% (1 minute Period)
• Auxiliary Test Load Fixed 200 Ohms
• Auxiliary Test Load Accuracy ± 1% (DC)
• Auxiliary Test Load Rating 225 Watts
• Power Supply Kycon 3 position locking connector(9 VDC 3A Output)
• Oscilloscope Output Isolated (uncalibrated), BNC Connector
• Operating Range 15 to 35 Degrees C
• Storage Range -20 to 60 Degrees C
• Humidity Limit 90% Non-Condensing
• Memory Retention 10 years w/o Power

Includes:

• ESU-2300 Accessory Kit
• Power Supply - Universal 100-240V
• Communication Cable - USB
• Communication Cable - RS23
• NIST Traceable Calibration Certificate
