OEM#: ZDVSM4103TNew OEM Original Outright

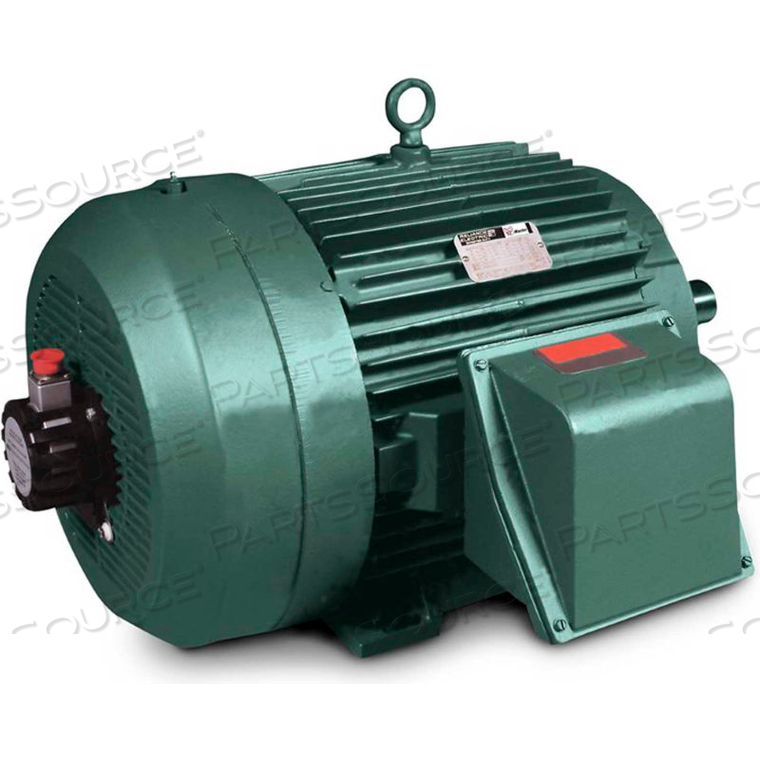

MOTOR, 25HP, 1800RPM, 3PH, 60HZ, 284TC, TEFC, FOOT by BALDOR

Your price:
$9,357.04 eachEstimated to ship by 12/02 if ordered before 10:30 AM EST
HomeBALDORzdvsm4103t
MOTOR, 25HP, 1800RPM, 3PH, 60HZ, 284TC, TEFC, FOOT by BALDOR
MOTOR, 25HP, 1800RPM, 3PH, 60HZ, 284TC, TEFC, FOOT by BALDOR

OEM#: ZDVSM4103T
MOTOR, 25HP, 1800RPM, 3PH, 60HZ, 284TC, TEFC, FOOT by BALDOR

New OEM Original Outright
Your price:
$9,357.04 each
Estimated to ship by 12/02 if ordered before 10:30 AM EST
Asset Information
ADD TO LIST
Product Overview

Baldor-Reliance Motor, 25HP,1800RPM,3PH,60HZ,284TC,TEFC,FOOT,

Features:

  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Technical Specs
P/N: ZDVSM4103T Key Specs
Item
MOTOR, 25HP, 1800RPM, 3PH, 60HZ, 284TC, TEFC, FOOT
OEM
BALDOR
OEM #
ZDVSM4103T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Baldor Catalog Number
ZDVSM4103T
Brg-De-Afbma
50BC03JP30X
Brg-Ode-Afbma
50BC03JP30X
C-Dimension Inches
27.44
Constant-Torq-Hertz
1000 1
Country of Origin
USA
Drive End Flange
C-Face
Duty
Continuous
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Frame
284TC
Horsepower
25
Insulation Class
F
Is_Motor
Yes
Magnetizing-Current
24/12
Maximum-Rpm
5400
Motor Rpm 60Hz
1775
Motor-Base-Amps
62/31
Motor-Base-Hp
25
Motor-Base-Hz
60
Motor-Base-Rpm
1775
Motor-Base-Volts
230/460
Motor-Max-Amps
59.8/29.9
Motor-Max-Hp
25
Motor-Max-Hz
90
Motor-Max-Rpm
2660
Motor-Max-Volts
230/460
Phase
3
Poles
4
Reliance Number
W00979A A 004
Rotor-Inertia
3.46
Rpm
1775
Rpm Range
1701-1800
Service Factor
1
Spec. Number
P28G3215
Temp. Code
2
Type
P
Weight
445

Baldor-Reliance Motor, 25HP,1800RPM,3PH,60HZ,284TC,TEFC,FOOT,

Features:

  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
