OEM#: EM3215TNew OEM Original Outright

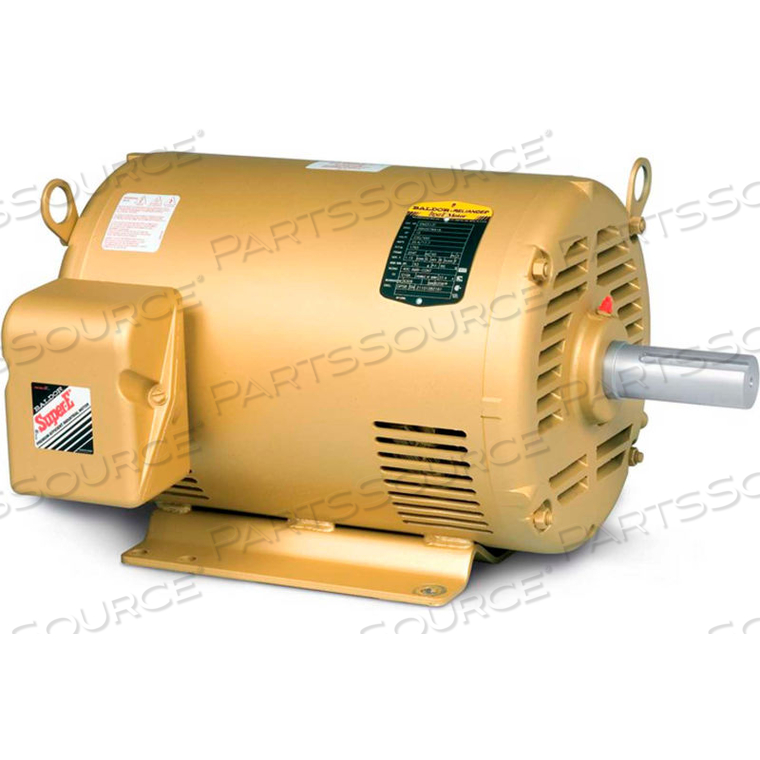

MOTOR, 2HP, 1170RPM, 3PH, 60HZ, 184T, 3640M, OPSB, F1 by BALDOR
Your price:
$1,123.11 each
OEM#: EM3215TMOTOR, 2HP, 1170RPM, 3PH, 60HZ, 184T, 3640M, OPSB, F1 by BALDOR
New OEM Original Outright
Your price:
$1,123.11 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Baldor-Reliance Motor, 2HP,1170RPM,3PH,60HZ,184T,3640M,OPSB,F1
Features:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
Features:
- Heavy duty frames
- Ball bearings
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Low-loss electrical lamination grade steel
- Three year warranty.
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
Technical Specs
P/N: EM3215T Key Specs
Item
MOTOR, 2HP, 1170RPM, 3PH, 60HZ, 184T, 3640M, OPSB, F1
OEM
BALDOR
OEM #
EM3215T
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
208V Amps
7.1
Ambient Temp C
40
Bearing-Drive-End
6206
Bearing-Opp-Drive-End
6205
C-Dimension Inches
16.5
Design Code
B
Doe-Code
010A
Drive End Flange
Standard
Enclosure
OPSB
Enclosure Type
Open/Drip Proof
Fl Amps
7.1-7/3.5
Fl Efficiency
88.5
Frame
184T
Hertz
60
Horsepower
2
Insulation Class
F
Is_Motor
Yes
Kva-Code
J
Motor Rpm 60Hz
1170
Mounting
Rigid
Nameplate Rpm
1170
Phase
3
Poles
6
Power-Factor
60
Rpm Range
1101-1200
Service Factor
1.15
Spec. Number
36G548Y523
Voltage
208-230/460
Weight
85
Baldor-Reliance Motor, 2HP,1170RPM,3PH,60HZ,184T,3640M,OPSB,F1
Features:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
Features:
- Heavy duty frames
- Ball bearings
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Low-loss electrical lamination grade steel
- Three year warranty.
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
