OEM#: CFSWDM3546-ENew OEM Original Outright

FOOD SAFE, IP69, 1HP, 1760RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N by BALDOR

Your price:
$2,166.38 eachEstimated to ship by 12/02 if ordered before 10:30 AM EST
HomeBALDORcfswdm3546e
FOOD SAFE, IP69, 1HP, 1760RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N by BALDOR
FOOD SAFE, IP69, 1HP, 1760RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N by BALDOR

OEM#: CFSWDM3546-E
FOOD SAFE, IP69, 1HP, 1760RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N by BALDOR

New OEM Original Outright
Your price:
$2,166.38 each
Estimated to ship by 12/02 if ordered before 10:30 AM EST
Asset Information
ADD TO LIST
Product Overview

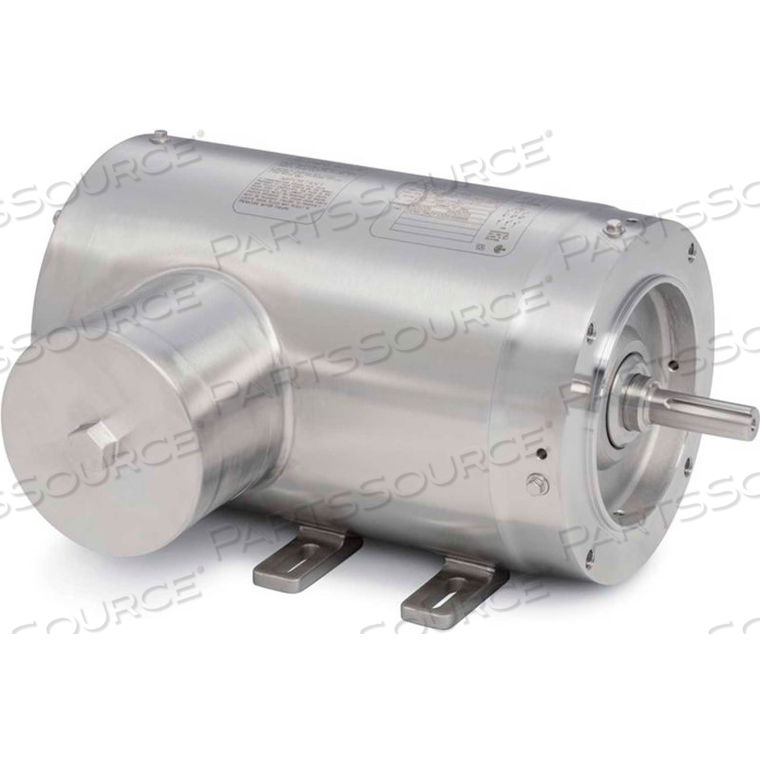

Baldor CFSWDM3546-E, Food Safe, IP69, 1HP, 1760RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N

Baldor-Reliance Food safe IP69 motors are designed to perform reliably- at maximum efficiency- around the clock and be effectively cleaned to a hygienic level to ensure uncompromised food safety.

Stainless Steel

  • An all stainless-steel construction safeguards against corrosion to avoid costly downtime and repairs.
Encapsulation/Potted Leads
  • Hardened epoxy resin completely encapsulates the windings for an additional layer of internal protection against water and humidity. The encapsulation extends into the conduit box to prevent moisture from entering the winding.
Shaft Seals
  • Our two-barrier mechanical seal prevents water from entering at the shaft extension of the motor. The viton material is chemical resistant, withstands high temperature, and direct spray.
Rotatable Conduit Box
  • The middle portion of our 3-piece conduit box can be rotated 360 degrees (at 90 degree increments) to rotate the lead opening in the direction you need it.

Technical Specs
P/N: CFSWDM3546-E Key Specs
Item
FOOD SAFE, IP69, 1HP, 1760RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N
OEM
BALDOR
OEM #
CFSWDM3546-E
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Approvals
"UR, CSA"
Baldor Catalog Number
CFSWDM3546-E
Bearing-Drive-End
Sealed Bearing
Country of Origin
USA
Design
B
Duty
CONT
Efficiency
0.855
Efficiency Type
PREMIUM
Enclosure
TENV
Enclosure Type
Totally Enclosed
Fl Amps
1.5 A
Frame
56C
Hertz
60
Horsepower
1
Is_Motor
YES
Material
Stainless Steel
Mounting
Face and Foot
Phase
3
Rotation
ANY
Rpm
1800
Rpm Range
1701-1800
Service Factor
1.15
Shaft Diameter
0.625 in
Shaft Length
1.875
Thermal Protection
NONE
Voltage
230/460
Weight
37

Baldor CFSWDM3546-E, Food Safe, IP69, 1HP, 1760RPM, 3PH, 60HZ, 56C, 3522M, TENV, F1, N

Baldor-Reliance Food safe IP69 motors are designed to perform reliably- at maximum efficiency- around the clock and be effectively cleaned to a hygienic level to ensure uncompromised food safety.

Stainless Steel

  • An all stainless-steel construction safeguards against corrosion to avoid costly downtime and repairs.
Encapsulation/Potted Leads
  • Hardened epoxy resin completely encapsulates the windings for an additional layer of internal protection against water and humidity. The encapsulation extends into the conduit box to prevent moisture from entering the winding.
Shaft Seals
  • Our two-barrier mechanical seal prevents water from entering at the shaft extension of the motor. The viton material is chemical resistant, withstands high temperature, and direct spray.
Rotatable Conduit Box
  • The middle portion of our 3-piece conduit box can be rotated 360 degrees (at 90 degree increments) to rotate the lead opening in the direction you need it.
