OEM#: HADP12-3A-T-TE-CWTHNew OEM Original Outright

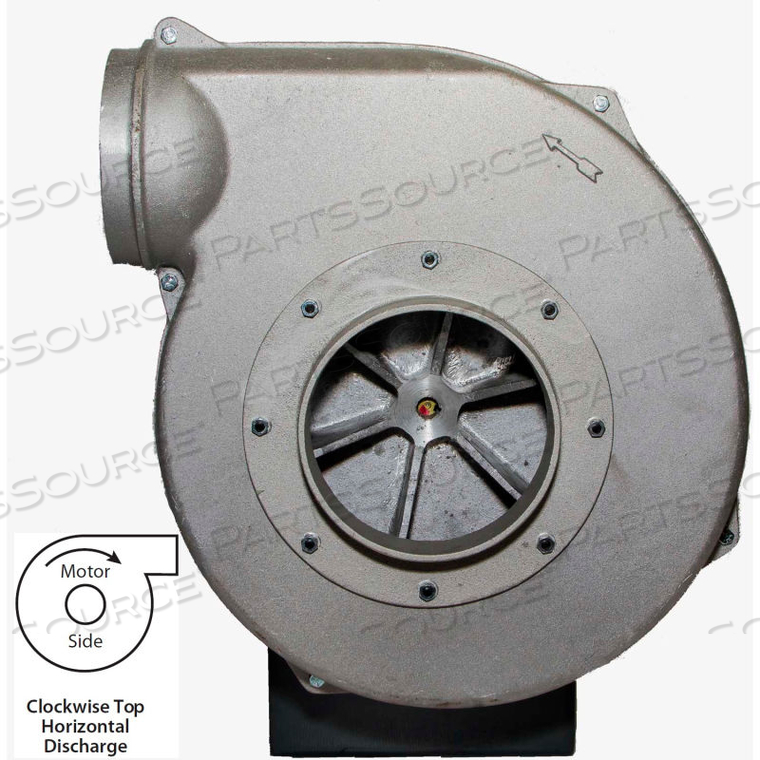

ALUMINUM BLOWER, HADP12, 3 HP, 3 PH, TEFC, CW, 230/460V, TH, WHEEL 11-1/2" X 2-3/4" by Americraft Manufacturing Co., Inc

Your price:
$2,592.00 eachReady to ship
HomeAmericraft Manufacturing Co., IncHADP123ATTECWTH
ALUMINUM BLOWER, HADP12, 3 HP, 3 PH, TEFC, CW, 230/460V, TH, WHEEL 11-1/2" X 2-3/4" by Americraft Manufacturing Co., Inc
ALUMINUM BLOWER, HADP12, 3 HP, 3 PH, TEFC, CW, 230/460V, TH, WHEEL 11-1/2" X 2-3/4" by Americraft Manufacturing Co., Inc

OEM#: HADP12-3A-T-TE-CWTH
ALUMINUM BLOWER, HADP12, 3 HP, 3 PH, TEFC, CW, 230/460V, TH, WHEEL 11-1/2" X 2-3/4" by Americraft Manufacturing Co., Inc

New OEM Original Outright
Your price:
$2,592.00 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: HADP12-3A-T-TE-CWTH Key Specs
Item
ALUMINUM BLOWER, HADP12, 3 HP, 3 PH, TEFC, CW, 230/460V, TH, WHEEL 11-1/2" X 2-3/4"
OEM
Americraft Manufacturing Co., Inc
OEM #
HADP12-3A-T-TE-CWTH
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Base Construction
Steel
Blower Decibels (Dba) @ 5' - Ducted Inlet & Outlet
75
Blower Decibels (Dba) @ 5' - If Open Inlet Or Outl
83
Cfm Airflow @ 1.000" Static Pressure
1245
Cfm Airflow @ 3.000" Static Pressure
1086
Cfm Airflow @ 5.000" Static Pressure
890
Cfm Airflow @ 7.000" Static Pressure
630
Country of Origin
USA
Discharge Position
Top Horizontal
Height Inches
19-1/8
Horsepower
3
Housing Construction
Cast Aluminum
Inlet Diameter Inches
7
Length Inches
17-7/8
Listing, Rating, Certification
Electrical Motors UL, CSA Approved
Model
HADP12
Motor Type
TEFC
Outlet Diameter Inches
6
Phase
3
Rotation (View From Motor Side)
Clockwise
Rpm
3450
Voltage
230 / 460
Weight Lbs.
128
Width Inches
20-5/8
