OEM#: 6B590New OEM Original Outright

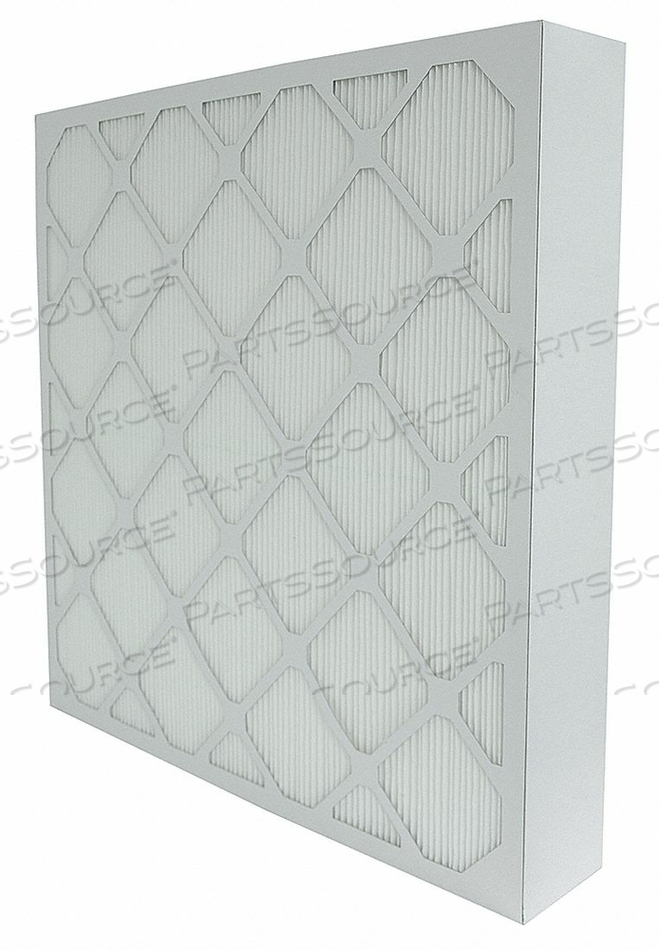

MINI-PLEAT AIR FILTER 24X24X4 MERV 14 by Air Handler

Your price:
$276.30 Per package of 2
$280.32 Savings: $4.02 (1%)
Ship date will be provided after ordering
HomeAir Handler6b590
MINI-PLEAT AIR FILTER 24X24X4 MERV 14 by Air Handler
MINI-PLEAT AIR FILTER 24X24X4 MERV 14 by Air Handler

OEM#: 6B590
MINI-PLEAT AIR FILTER 24X24X4 MERV 14 by Air Handler

New OEM Original Outright
Your price:
$276.30 Per package of 2
$280.32 Savings: $4.02 (1%)
Ship date will be provided after ordering
Asset Information
ADD TO LIST
Technical Specs
P/N: 6B590 Key Specs
Item
MINI-PLEAT AIR FILTER 24X24X4 MERV 14
OEM
Air Handler
OEM #
6B590
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Actual Depth
3-3/4 in
Actual Filter Size
23-3/8 x 23-3/8 x 3-3/4 in
Actual Height
23-3/8 in
Actual Width
23-3/8 in
Air Filter Header Type
No Header
Air Filter Item
Mini-Pleat Air Filter
Air Flow @ 300 fpm
1,200 cfm
Air Flow @ 500 fpm
2,000 cfm
Air Flow @ 625 fpm
2,500 cfm
Filter Efficiency - Air Filters
90% to 95%
Filters Out
MERV 13-16 All Bacteria, Droplet Nuclei (Sneeze), Cooking Oil, Most Smoke, Insecticide Dust, Most Face Power, Paint Pigments, Most Tobacco Smoke, Copier Toner
Frame or Header Material
Beverage Board
Gasket Location
None
Gasket Material
None
Initial Resistance @ 500 fpm
0.68 in wc
MERV Rating
14
Max Temperature
160 Degrees F
Max Velocity
625 fpm
Media Area
52 sq ft
Media Color
White
Media Material
Fiberglass
Media Separator Construction
Glue
Nominal Depth
4 in
Nominal Filter Size
24x24x4
Nominal Height
24 in
Nominal Width
24 in
Recommended Final Resistance
1.5 in wc
Removes Particles Down To
0.3 to 1 microns
Standards
UL 900
Style - Air Filters
Box
